Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: IP

Color: ~~

Gender: FEMALE

Part Number: 2098966-1

Part Description: Not Available

Connector No: D3834B

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C2 Connector End View
GCWD1079579Courtesy of CHRYSLER

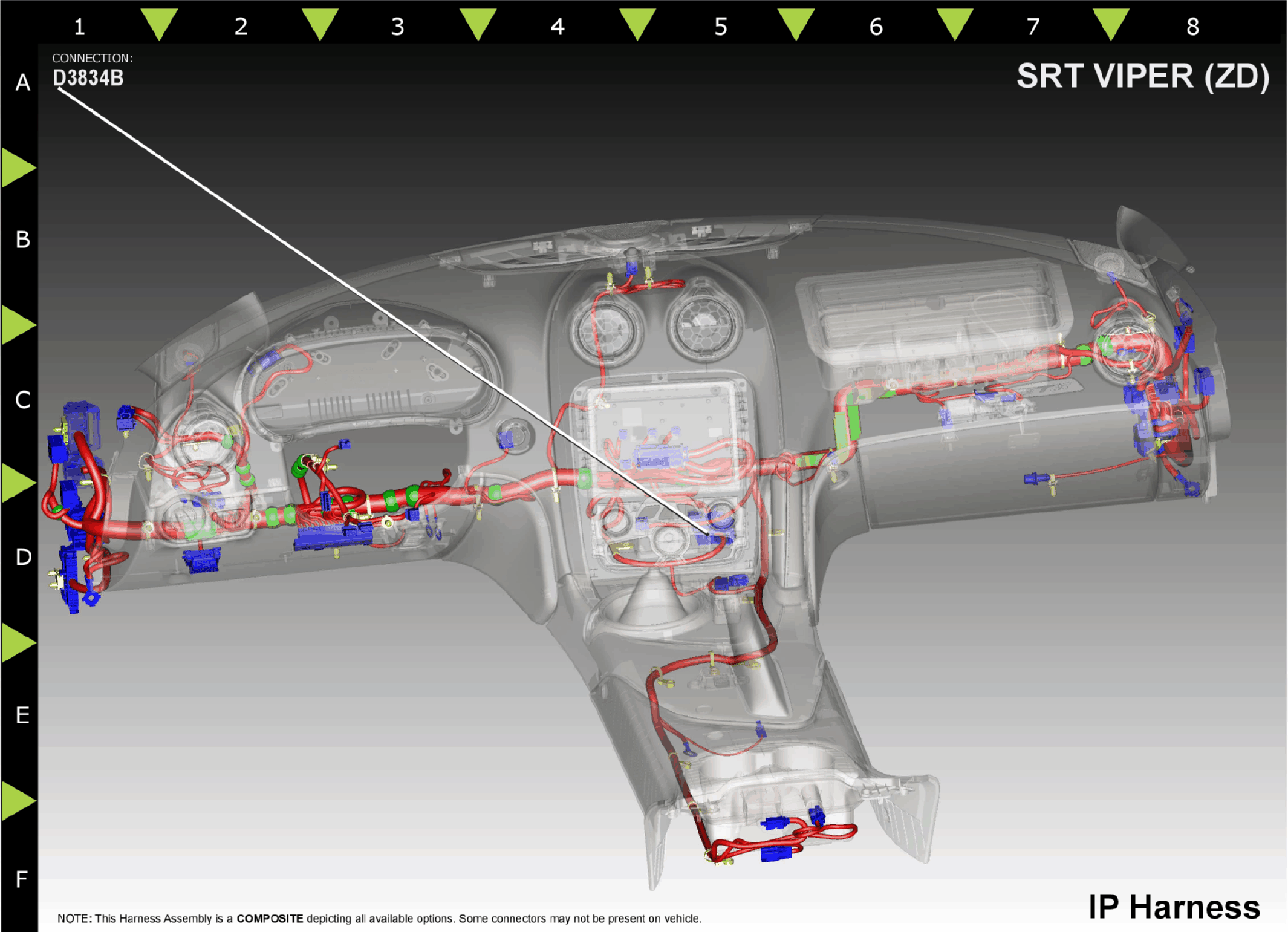

Fig 2: Module-Occupant Restraint Controller C2 Component Location
GCWD1174633Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
19 R59 LG/TN .5 DRIVER SEAT BELT BUCKLE SWITCH GROUND N/A
20 R57 LG/GY .5 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
21 R58 LB/GY .5 PASSENGER SEAT BELT SWITCH SENSE N/A
22 R263 LB/VT .5 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
23 R264 VT/LB .5 PASSENGER SEAT POSITION SENSOR VOLTAGE N/A
37 R60 LB/TN .5 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
41 R277 DB/LG .5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
42 R278 DB/DG .5 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
43 R280 DB/TN .5 PASENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
44 R279 DB/OR .5 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
(1) Pins not listed are not used for this connector
