Fan, Cooling: Installation: Diesel

Fig 1: Electric Fan Connector & Clips
GC0145992Courtesy of CHRYSLER GROUP, LLC
  1. Position the radiator cooling fan (3) into mounts and attaching clips on the radiator. Press down to lock into place.

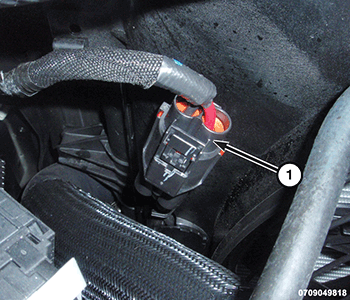

    Fig 2: Cooling Fan Wiring Harness Connector
    GC0170971Courtesy of CHRYSLER GROUP, LLC
  2. Connect the cooling fan wire harness connectors (1).
    Fig 3: Cooling Fan, Module & Upper Radiator Hose
    GC0147254Courtesy of CHRYSLER GROUP, LLC
  3. Install the upper radiator hose (3).

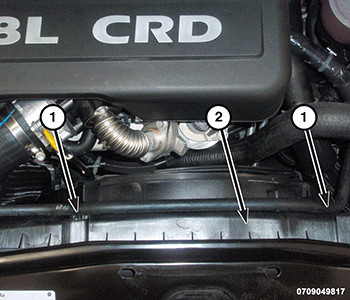

    Fig 4: Overflow Hose & Fan Shroud
    GC0170981Courtesy of CHRYSLER GROUP, LLC
  4. Attach the overflow hose (1) to the cooling fan shroud (2).
  5. Connect the negative cable.
  6. Fill cooling system. Refer to STANDARD PROCEDURE .
