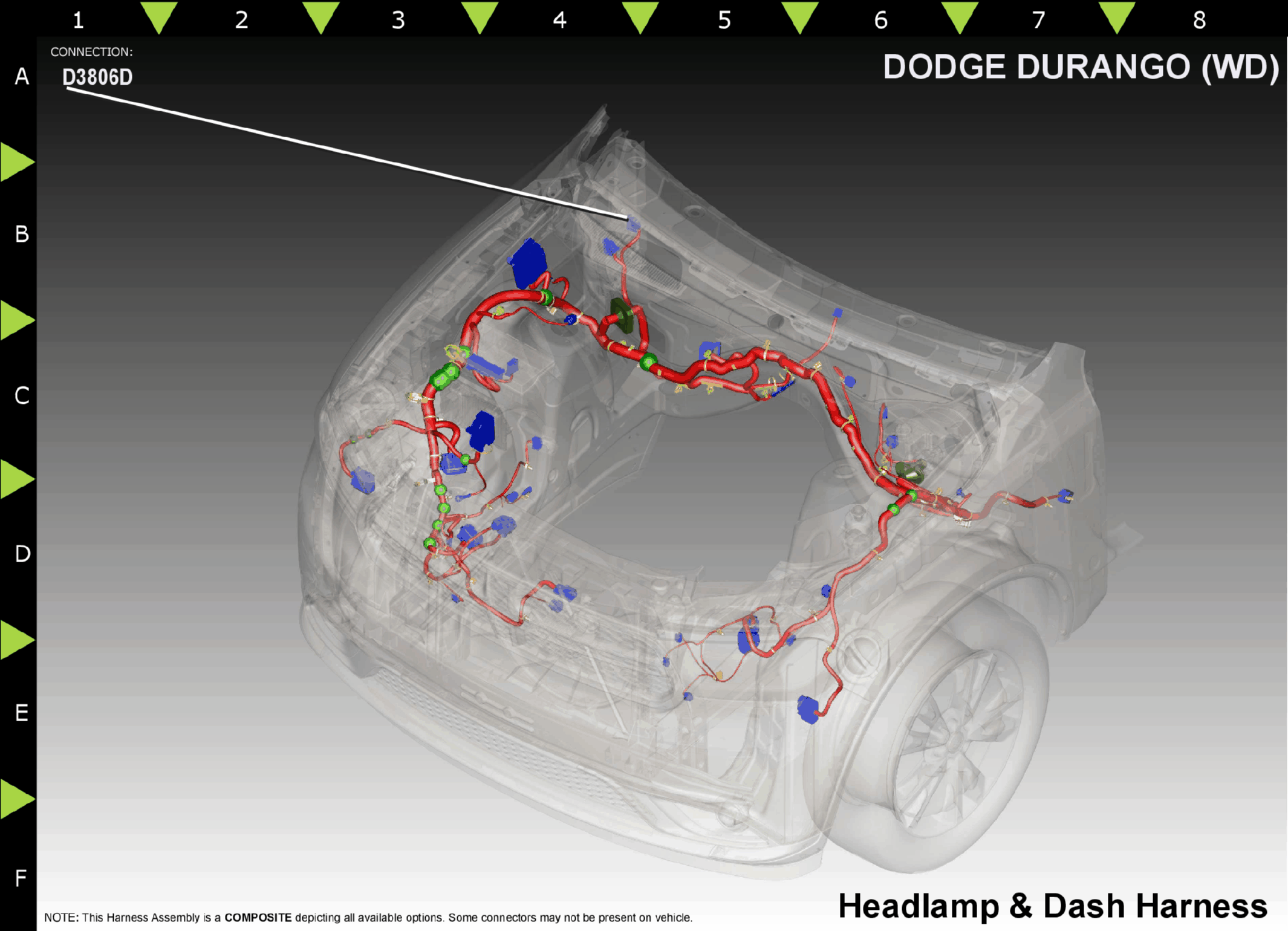

Module-Body Control C4/D (D3806D)
Harness-Family: HDLP_Dash
Color: WHITE
Gender: FEMALE
Part Number: 13673601
Part Description: Not Available
Connector No: D3806D
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 24
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | L33 | WT/LG | 20 | LEFT HIGH BEAM DRIVER | N/A | ||
| 2 | L44 | WT/TN | 20 | RIGHT LOW BEAM DRIVER | N/A | ||
| 3 | L78 | WT/OR | 20 | RIGHT FRONT PARK LAMP DRIVER | N/A | ||
| 6 | W24 | BR/OR | 20 | FUSED RUN RELAY OUTPUT | NOT USED | ||
| 13 | L90 | WT/OR | 20 | RIGHT FRONT FOG LAMP CONTROL | N/A | ||
| 14 | L61 | WT/LG | 20 | LEFT FRONT TURN LAMP DRIVER | N/A | ||
| 15 | L58 | WT/YL | 20 | LEFT DRL LAMP DRIVER | N/A | ||
| 18 | B15 | WT/VT | 20 | BRAKE SIGNAL 1 | N/A | ||
| 19 | Z420 | BK | 20 | GROUND | N/A | ||
| 21 | B20 | DG/OR | 20 | BRAKE FLUID LEVEL SIGNAL | N/A | ||
| 22 | G31 | VT/LG | 20 | AAT SIGNAL | N/A | ||
| 23 | G931 | VT/BR | 20 | SENSOR GROUND | N/A | ||
|
|||||||
