Module, Power Liftgate Control: Installation: Installation
WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

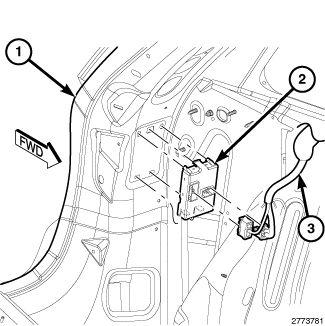

- Position the Power LiftGate Module (PLGM) (2) to the left lower inner D-pillar (1) in the vehicle.
- Engage the two tabs integral to the lower end of the PLGM housing into the slots in the lower left inner D-pillar.
- Press the top of the PLGM housing against the lower left inner D-pillar far enough for the latch feature integral to the upper end of the PLGM housing to engage the clearance hole in the inner D-pillar.
- Reconnect the two body wire harness (3) connectors to the PLGM connector receptacles.
- Reinstall the quarter trim panel to the lower left inner D-pillar. Refer to PANEL, QUARTER TRIM, INSTALLATION .
- Reconnect the battery negative cable.
NOTE:
If a replacement power liftgate system component is installed or a mechanical liftgate adjustment is made, the PLGM must learn or relearn the effort and time required to open or close the liftgate. This learn/relearn cycle can be initiated using the power liftgate switches, using the Remote Keyless Entry (RKE) FOB with Integrated Key (FOBIK) or with a diagnostic scan tool connected to the Data Link Connector (DLC). Refer to MODULE, POWER LIFTGATE CONTROL, STANDARD PROCEDURE .
