Module, Keyless Ignition Node: Removal: Removal

Disconnect and isolate the negative battery cable.

Fig 1: Center Bezel Retaining Clips
Courtesy of CHRYSLER GROUP, LLC
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, work around the perimeter of the bezel, and across the middle releasing the retaining clips (1) and separate the bezel from the instrument panel.

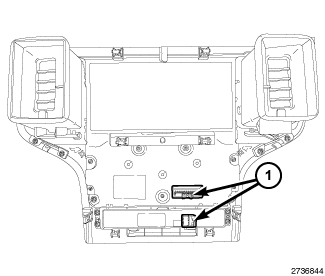

Fig 2: Electrical Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connectors (1) and remove the bezel.

Fig 3: Steering Column Surround Bezel & Screws
Courtesy of CHRYSLER GROUP, LLC
Loosen the steering column surround bezel (2) on the instrument panel closeout.
Position the telematic steering column outward.
Remove the two screws (1) securing the Keyless Ignition Node (KIN) bezel to the instrument panel. The second screws was concealed by the steering column surround bezel.

Fig 4: Keyless Ignition Node Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector from the KIN.

Fig 5: Keyless Ignition Node Screws
Courtesy of CHRYSLER GROUP, LLC
Remove two screws (1) securing the KIN to the bezel.
