Module-Powertrain Control C2 (D3821B)

Harness-Family: Engine

Color: BROWN

Gender: FEMALE

Part Number: 1924943-1

Part Description: Not Available

Connector No: D3821B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 96

Fig 1: Module-Powertrain Control C2 Connector End View
GCWD1006480Courtesy of CHRYSLER

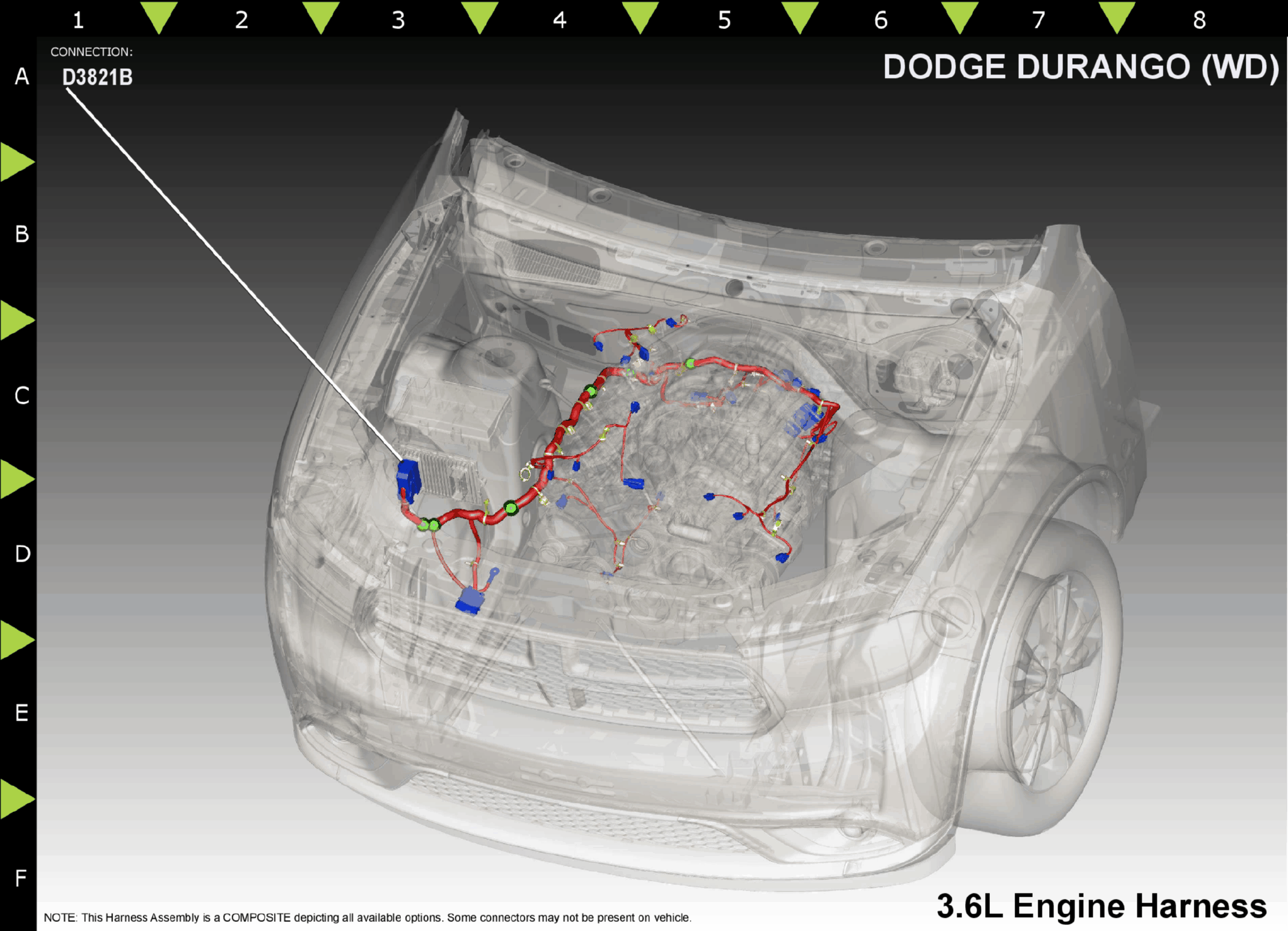

Fig 2: Module-Powertrain Control C2 Component Location
GCWD1148226Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K19 DB/DG 16 COIL CONTROL 1 N/A
2 K20 BR/GY 18 GEN FIELD CONTROL 3.6L
3 K447 TN/YL 20 ETC MOTOR (+) N/A
4 K448 TN/OR 20 ETC MOTOR (-) N/A
5 K451 BR/WT 20 MDS SOL CONTROL 1 5.7L
6 K452 BR/LB 20 MDS SOL CONTROL 4 5.7L
8 K11 BR/YL 18 INJECTOR CONTROL 1 N/A
9 K12 BR/DB 18 INJECTOR CONTROL 2 N/A
10 K13 BR/LB 18 INJECTOR CONTROL 3 N/A
11 K14 BR/TN 18 INJECTOR CONTROL 4 N/A
12 K2 VT/OR 20 ECT SIGNAL N/A
13 K242 BR/WT 20 KS 2 SIGNAL N/A
14 K42 DB/YL 20 KS 1 SIGNAL N/A
16 G24 VT/BR 20 EOT SIGNAL N/A
17 K21 DB/LG 20 IAT SIGNAL 3.6L
18 K904 DB/DG 18 O2 RETURN (DOWNSTREAM) N/A
19 K902 BR/DG 18 O2 RETURN (UPSTREAM) N/A
20 G6 VT/GY 20 OIL PRESSURE SIGNAL N/A
22 K276 DB/WT 20 VVT EXHAUST CONTROL 3.6L
22 K442 DB 20 VCT CONTROL 5.7L
23 K76 BR/WT 20 VVT INTAKE CONTROL 3.6L
24 K99 BR/LG 16 O2 1/1 HEATER CONTROL N/A
25 K17 DB/TN 16 COIL CONTROL 2 N/A
37 K924 WT/BR 20 KS 2 RETURN N/A
38 K942 BR/LG 20 KS 1 RETURN N/A
40 A804 RD/VT 18 GEN SENSE N/A
41 K43 DB/LG 18 O2 2/1 SIGNAL N/A
42 K243 BR 18 O2 2/2 SIGNAL N/A
43 K141 DB/YL 18 O2 1/2 SIGNAL N/A
44 K41 DB/LB 18 O2 1/1 SIGNAL N/A
45 K1 VT/BR 20 MAP SIGNAL N/A
48 K299 BR/WT 16 O2 1/2 HEATER CONTROL SUPPLY N/A
49 K18 DB/OR 16 COIL CONTROL 3 N/A
50 K453 BR/DG 20 MDS SOL CONTROL 6 5.7L
51 K454 BR/OR 20 MDS SOL CONTROL 7 5.7L
61 K445 DB/DG 20 CMP SIGNAL 4 3.6L
62 K441 DB/BR 20 CMP SIGNAL 2 3.6L
63 K444 DB/TN 20 CMP SIGNAL 3 3.6L
65 K922 BR/DB 20 TP SENSOR RETURN N/A
66 K900 DB/DG 20 SENSOR GROUND N/A
67 F855 PK/YL 20 5 VOLT SUPPLY N/A
68 K915 BR/WT 18 SENSOR GROUND N/A
72 K199 BR/VT 16 O2 2/1 HEATER CONTROL N/A
73 K15 DB/GY 16 COIL CONTROL 4 N/A
74 K16 DB/YL 16 COIL CONTROL 5 N/A
75 K10 DB/OR 16 COIL CONTROL 6 N/A
76 K97 BR 16 COIL CONTROL 7 5.7L
77 K98 DB/YL 16 COIL CONTROL 8 5.7L
79 K38 BR/OR 18 INJECTOR CONTROL 5 N/A
80 K58 BR/VT 18 INJECTOR CONTROL 6 N/A
81 K26 BR/YL 18 INJECTOR CONTROL 7 5.7L
82 K28 BR/LB 18 INJECTOR CONTROL 8 5.7L
85 K44 DB/GY 20 CMP SIGNAL N/A
86 K24 BR/LB 20 CKP SIGNAL N/A
87 F856 YL/PK 20 5 VOLT SUPPLY N/A
88 K925 DB/GY 20 CKP GROUND N/A
89 K22 BR/OR 20 TP 1 SIGNAL N/A
90 K122 BR/DG 20 TP 2 SIGNAL N/A
93 G62 VT/YL 20 OIL PRESSURE SOL CONTROL 3.6L
94 K78 BR 20 VVT INTAKE CONTROL 2 3.6L
95 K277 DB 20 VVT EXHAUST CONTROL 2 3.6L
96 K399 BR/GY 16 O2 2/2 HEATER CONTROL N/A
(1) Pins not listed are not used for this connector
