Module, Door: Installation: Installation

WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

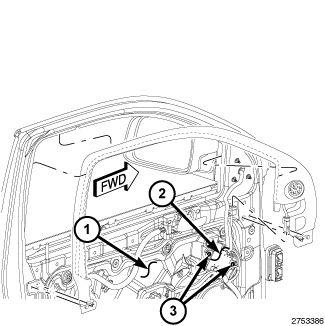

Fig 1: Door Control Module, Two Screws & Front Door Hardware Module Carrier

Courtesy of CHRYSLER GROUP, LLC

Position the door control module (2) to the front door hardware module carrier (1).
Install and tighten the two screws (3) that secure the door control module to the front door hardware module carrier. Tighten the screws securely.
Reconnect each of the electrical connectors to the connector receptacles of the door control module.
Reinstall the lower trim panel to the inside of the front door. Refer to PANEL, DOOR TRIM, INSTALLATION .
Reconnect the battery negative cable.
The Manual Relearn procedure should be performed following service of a door control module so that the module can learn the correct hard stops of the power window regulator. Refer to STANDARD PROCEDURE .
