Module, Forward Facing Camera: Removal: Removal
WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Separate the rear view mirror trim covers to gain access to the Forward Facing Camera (FFC). Refer to MIRROR, REARVIEW, REMOVAL .

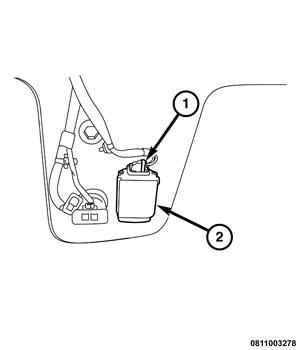

- Disconnect the electrical connector (1) from the Forward Facing Camera (2).
- The Camera is attached to a bracket in a hook and rotate fashion. Rotate the camera clockwise to release from the bracket.
