Module, Headlamp Leveling: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

To avoid serious or fatal injury when working on the High Intensity Discharge (HID) headlamp system, be certain to take the proper precautions. The headlamp switch must be in the OFF position. Disconnect and isolate the battery negative cable. There is a risk of fatal injury caused by contact with high voltage used in the HID headlamps. There is a risk of explosion or fire caused by highly flammable materials in the vicinity of damaged HID lighting elements. There is a risk of injury caused by exposure to Ultra Violet (UV) light, a risk of burns caused by high component operating temperatures, a risk of mercury poisoning through glass splinters produced by bursting HID lighting elements. There is also a risk of poisoning caused by inhalation of mercury vapors and by toxic salts and mercury compounds being ingested or coming into contact with the skin. Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on HID headlamps. Wear insulated safety shoes, safety glasses and protective gloves. Remove flammable materials and ensure sufficient ventilation in the working area.

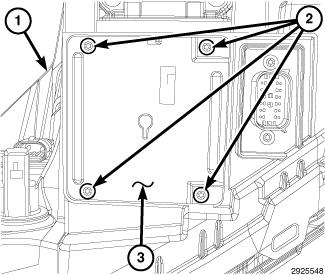

Fig 1: Front Lamp Unit, Four Screws & Automatic Headlamp Leveling Module (AHLM)
GC0145792Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the right front lamp unit (1) from the vehicle. Refer to UNIT, FRONT LAMP, REMOVAL .
  3. Remove the four screws (2) that secure the cover plate and the Automatic Headlamp Leveling Module (AHLM) (3) (also known as the Headlamp Leveling Module/HLM) to the underside of the right front lamp unit housing.
  4. Pull the AHLM away from the receptacle on the bottom of the right front lamp unit housing far enough to access and disconnect the front lamp unit wire harness connector from the connector receptacle on the upward-facing side of the AHLM.
  5. Remove the AHLM from the lamp housing.
