Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 2098966-1

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

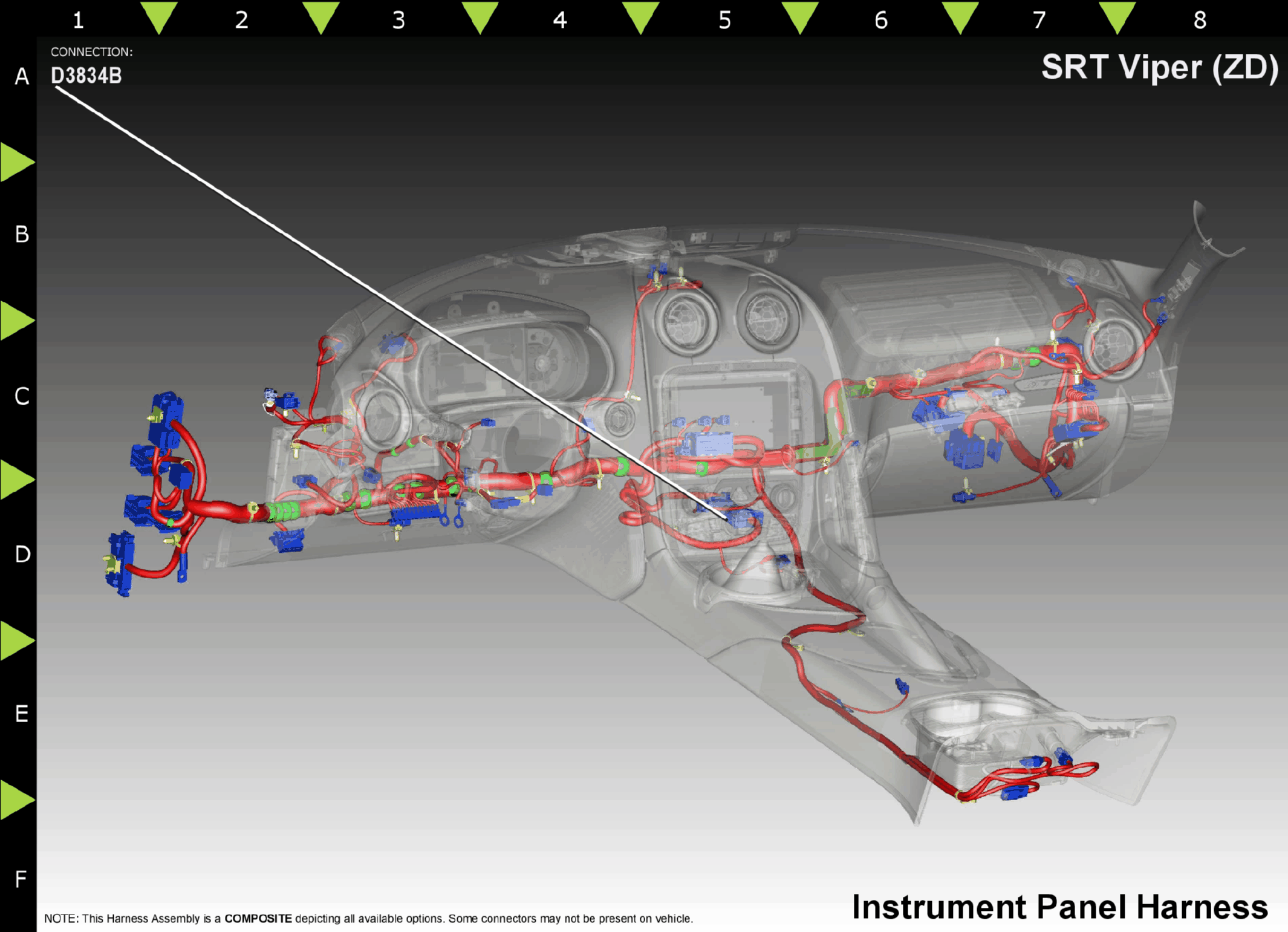

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

DG/OR

LEFT CURTAIN SQUIB 1 LINE 1

N/A

GY/WT

LEFT CURTAIN SQUIB 1 LINE 2

N/A

DB/VT

RIGHT CURTAIN SQUIB 1 LINE 2

N/A

GY/LB

RIGHT CURTAIN SQUIB 1 LINE 1

N/A

R59

LG/TN

DRIVER SEAT BELT BUCKLE SWITCH GROUND

N/A

R57

LG/GY

DRIVER SEAT BELT BUCKLE SWITCH SENSE

N/A

R58

LB/GY

PASSENGER SEAT BELT SWITCH SENSE

N/A

R263

LB/VT

DRIVER SEAT POSITION SENSOR VOLTAGE

N/A

R264

VT/LB

PASSENGER SEAT POSITION SENSOR VOLTAGE

N/A

R15

LG/BR

LEFT SIDE IMPACT SENSOR 1 GROUND

N/A

R13

LG/TN

LEFT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R14

TN/LG

RIGHT SIDE IMPACT SENSOR 1 SIGNAL

N/A

R16

BR/LG

RIGHT SIDE IMPACT SENSOR 1 GROUND

N/A

R150

LG/DB

LEFT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R130

LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

R140

RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL

N/A

R160

RIGHT SIDE IMPACT PRESSURE SENSOR GROUND

N/A

R60

LB/TN

PASS SEAT BELT BUCKLE SWITCH SENSE

N/A

R277

DB/LG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

R278

DB/DG

DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R280

DB/TN

PASENGER SEAT BELT RETRACTOR TENSIONER LINE 1

N/A

R279

DB/OR

PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
