Deploy Bracket

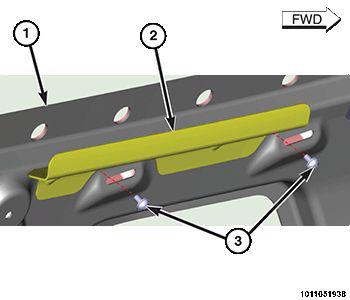

Fig 1: Side Air Bag, Deploy Bracket, Door Trim Panel, & Screws
GC0172181Courtesy of CHRYSLER GROUP, LLC
  1. Position the deploy bracket (2) near the top of the door inner panel (1).
  2. Install and tighten the two screws that secure the deploy bracket to the inner door panel. Tighten the screws to specification. Refer to SPECIFICATIONS .
  3. Reinstall the Side Airbag (SAB) (also known as Side Airbag Inflatable Curtain/SABIC) into the vehicle. Refer to AIR BAG, SIDE, INSTALLATION .
