Fan Module-Radiator Cooling (Standard Duty Cooling) (D3022A)

Harness-Family: HDLP_Dash

Color: DARK GRAY

Gender: FEMALE

Part Number: 7283-3108-10

Part Description: YESC CONNECTOR SUB-ASSEMBLY W/O CPA

Connector No: D3022A

Option: STANDARD DUTY COOLING

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Fan Module-Radiator Cooling Connector End View (Standard Duty Cooling)

Courtesy of CHRYSLER

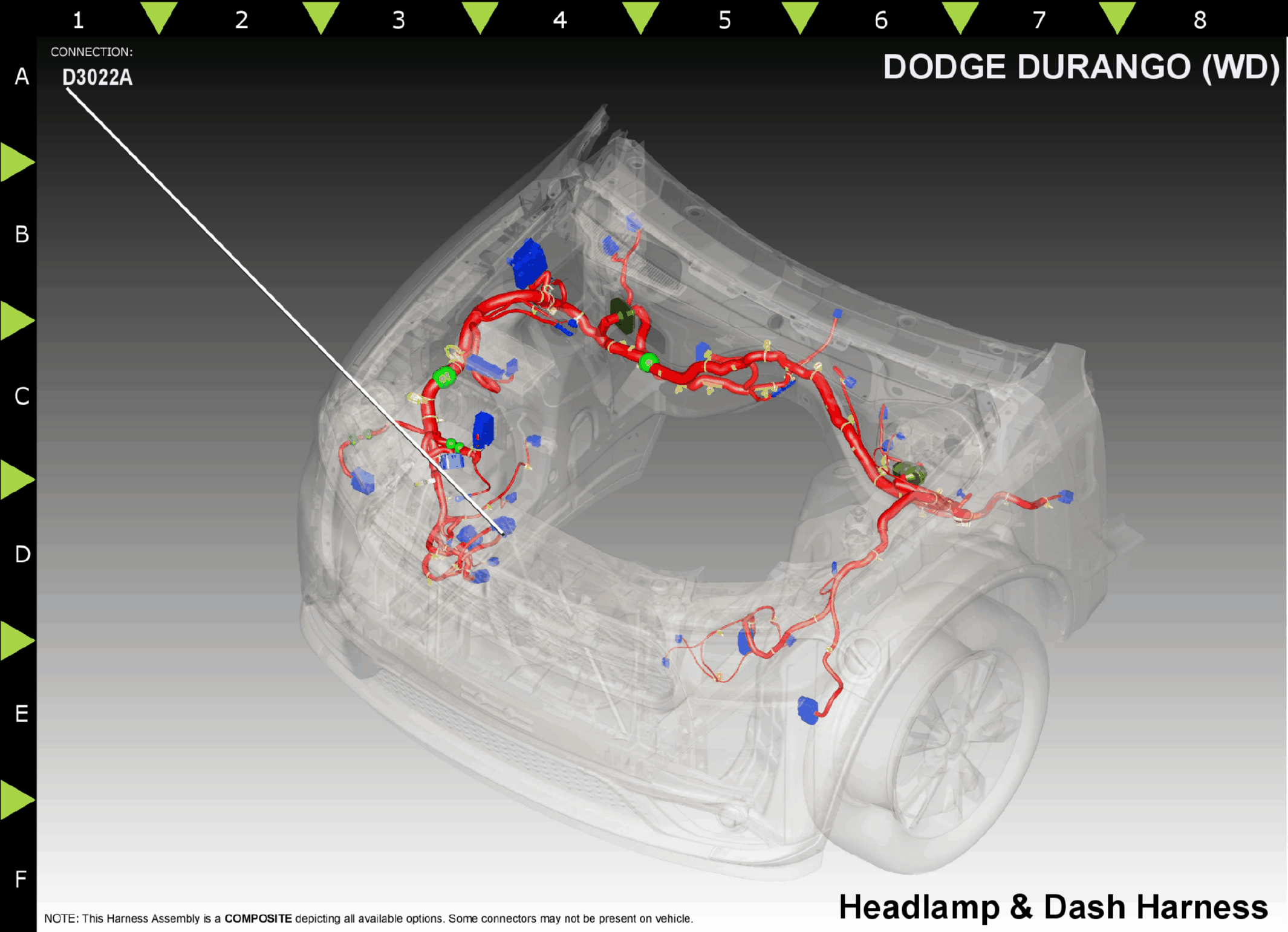

Fig 2: Fan Module-Radiator Cooling Component Location (Standard Duty Cooling)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N43

DB/TN

5.0

RAD FAN HIGH

N/A

Z906

6.0

GROUND

N/A

N42

DB/DG

5.0

RAD FAN LOW

N/A

⁽¹⁾	Pins not listed are not used for this connector
