Module-Body Control C4/D (D3806D)

Harness-Family: HDLP_Dash

Color: NATURAL

Gender: FEMALE

Part Number: 13850156_13850159

Part Description: Not Available

Connector No: D3806D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

Fig 1: Module-Body Control C4/d Connector End View

Courtesy of CHRYSLER

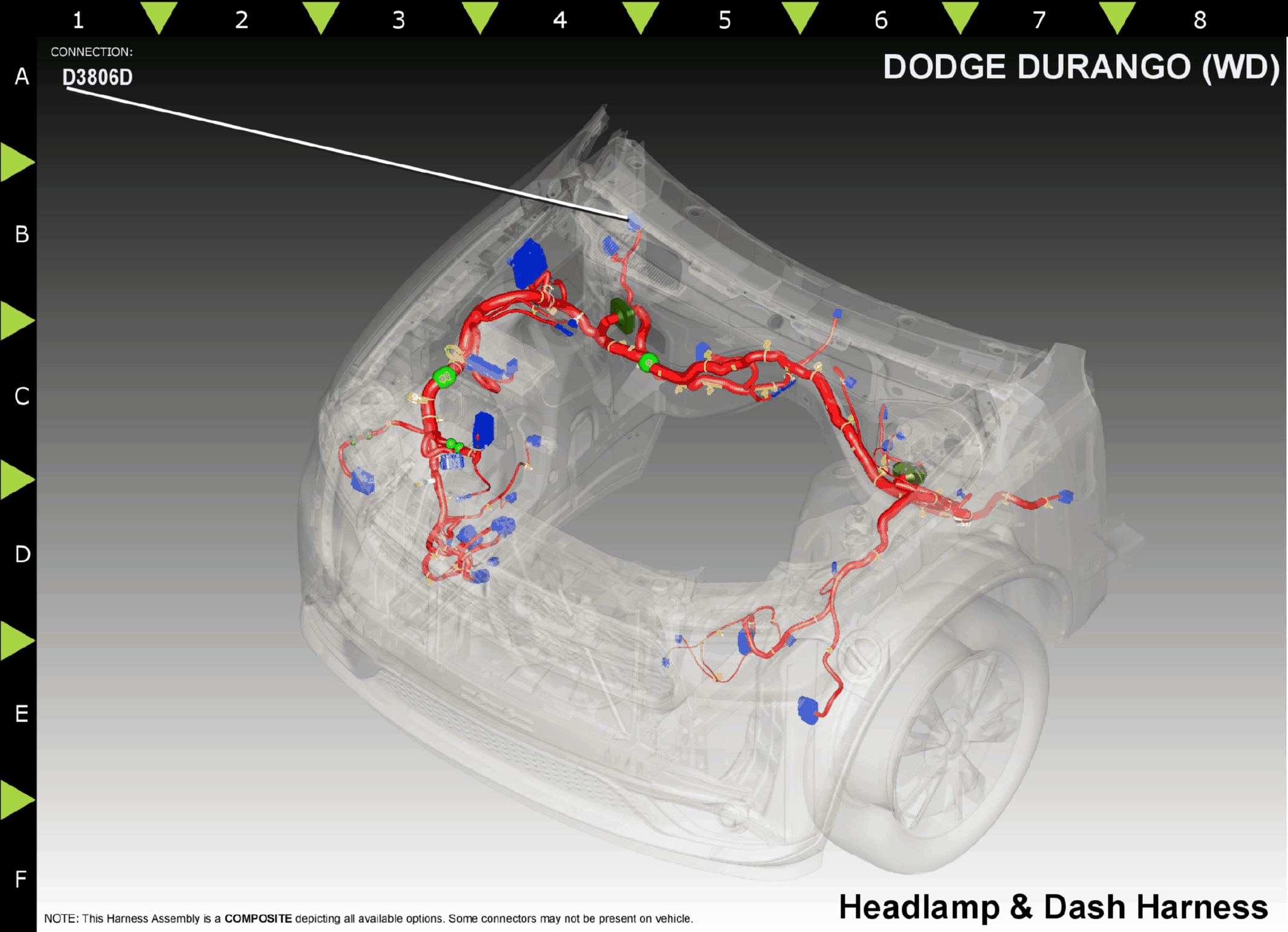

Fig 2: Module-Body Control C4/d Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L33

WT/LG

0.50

LEFT HIGH BEAM DRIVER

N/A

L44

WT/TN

0.50

RIGHT LOW BEAM DRIVER

N/A

L78

WT/OR

0.50

RIGHT FRONT PARK LAMP DRIVER

N/A

W24

BR/OR

0.50

FUSED RUN RELAY OUTPUT

N/A

L90

WT/OR

0.50

RIGHT FRONT FOG LAMP CONTROL

N/A

L61

WT/LG

0.50

LEFT FRONT TURN LAMP DRIVER

N/A

L58

WT/YL

0.50

LEFT DRL LAMP DRIVER

N/A

B15

WT/VT

0.50

BRAKE SIGNAL 1

N/A

Z420

0.50

GROUND

N/A

B20

DG/OR

0.50

BRAKE FLUID LEVEL SIGNAL

N/A

G31

VT/LG

0.50

AAT SIGNAL

N/A

G931

VT/BR

0.50

SENSOR GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
