Module-External Disc (D2761A)

Harness-Family: Console_Center

Color: BLACK

Gender: FEMALE

Part Number: 175966-2

Part Description: INSULATOR

Connector No: D2761A

Option: Standard

Repair Kit Part Number: 68032269AA

Cavity Count: 16

Fig 1: Module-External Disc Connector End View

GCWD1006370

Courtesy of CHRYSLER

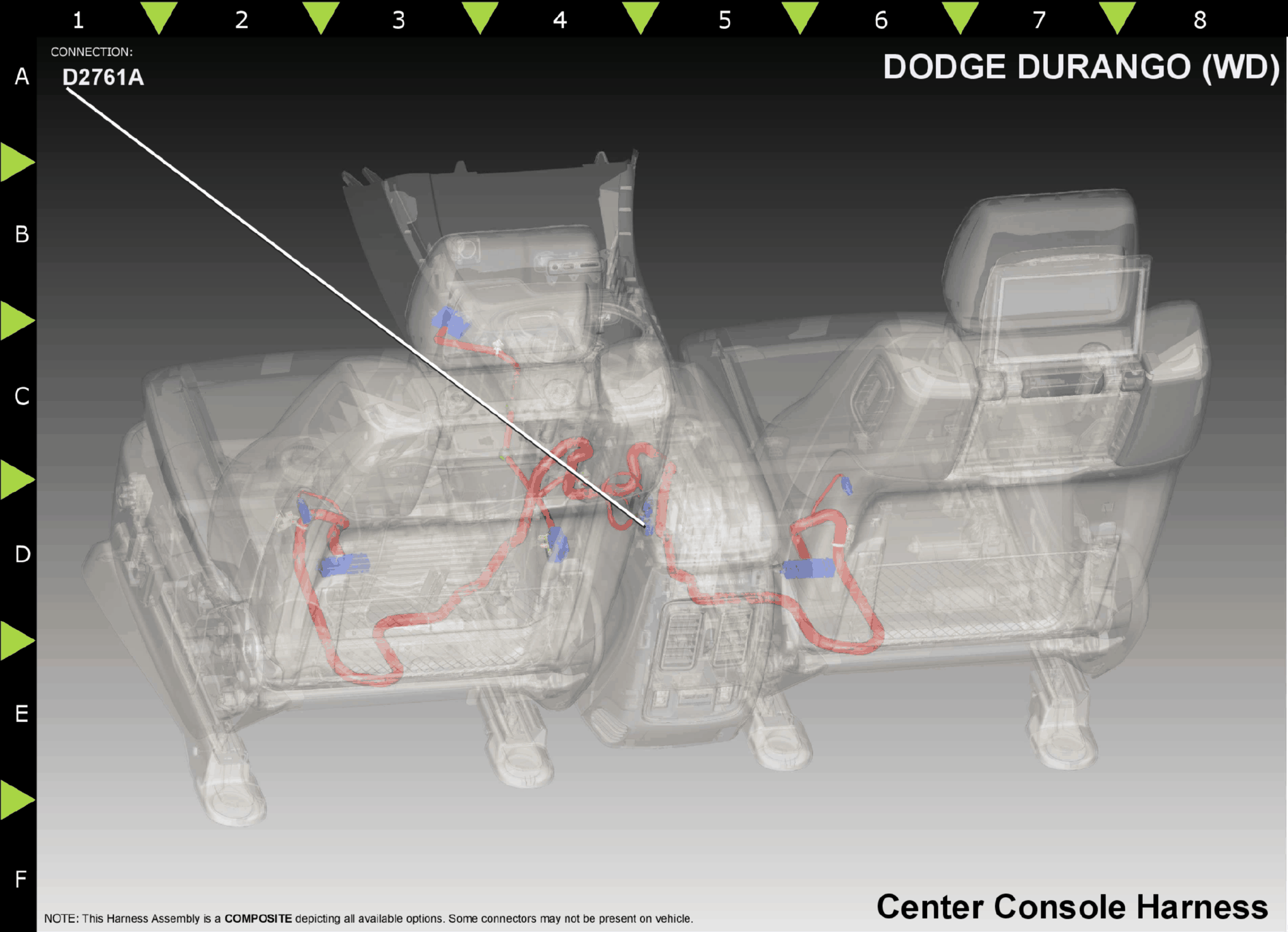

Fig 2: Module-External Disc Component Location

GCWD1164120

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A936

RD

20

FUSED B(+)

N/A

2

X41

DG/WT

20

CD CHANGER AUDIO LEFT SIGNAL

N/A

5

D199

WT/GY

20

CAN IHS (+)

N/A

6

D198

WT

20

CAN IHS (-)

N/A

10

X40

GY/WT

20

CD CHANGER AUDIO RIGHT SIGNAL

N/A

11

X140

GY/OR

20

CD CHANGER AUDIO GROUND

N/A

16

Z912

BK

20

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
