B0090-9A-Left Frontal Impact Sensor - Component Or System Operating Conditions: Notes

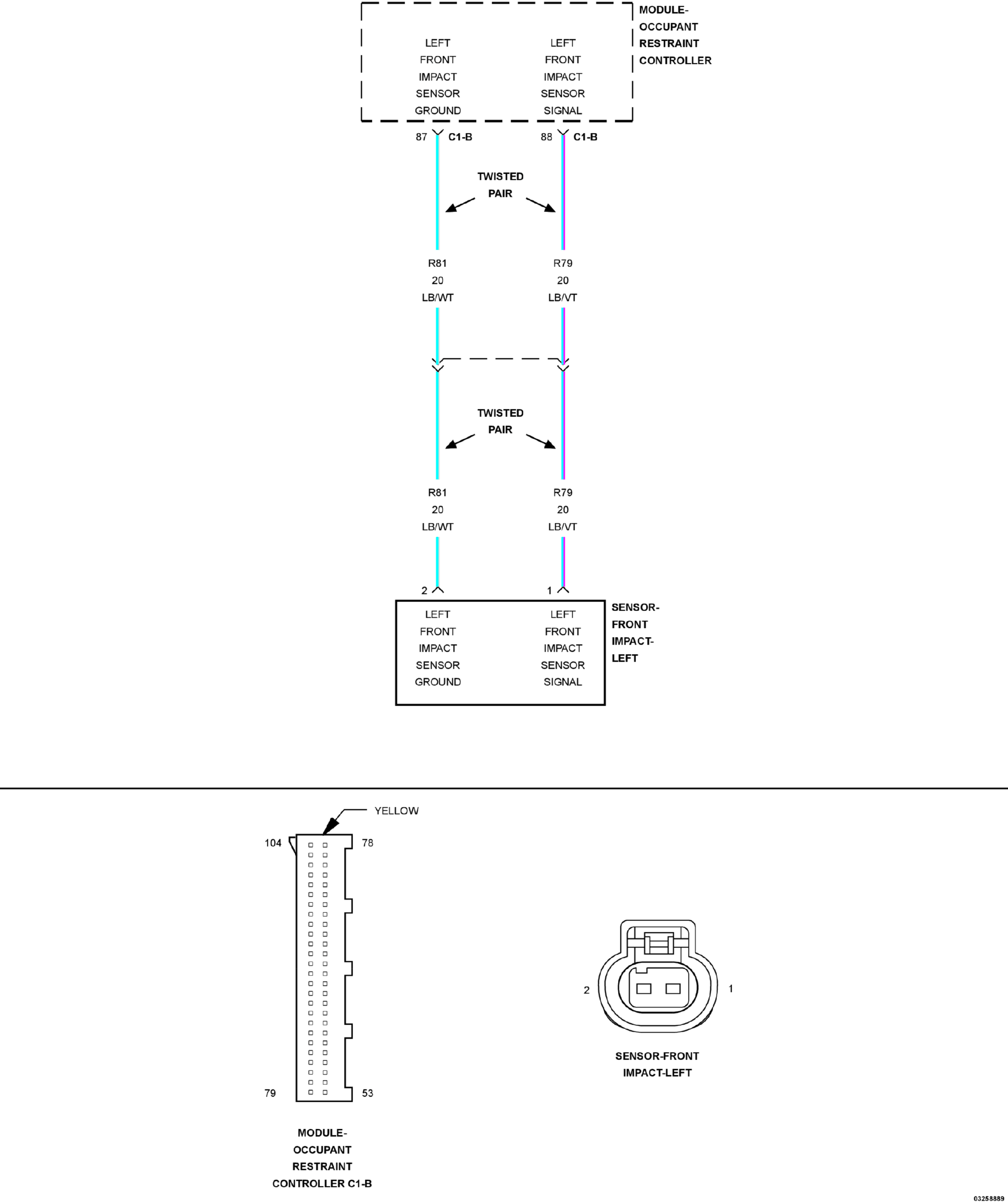

Fig 1: Left Frontal Restraints Sensor Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
