Module, Keyless Ignition Node: Installation: Installation

WARNING: This page is about a different car, the 2015 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

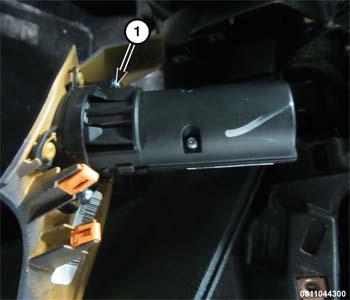

Fig 1: Keyless Ignition Node Screws
GC0162913Courtesy of CHRYSLER GROUP, LLC
  1. Install and tighten (1) the Keyless Ignition Node (KIN) to the kin bezel.

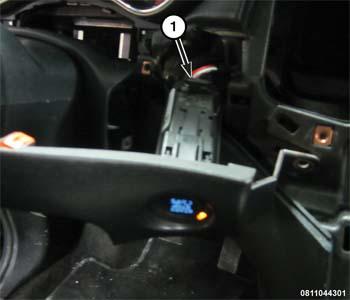

    Fig 2: Keyless Ignition Node Connector
    GC0162911Courtesy of CHRYSLER GROUP, LLC
  2. Connect the electrical connector (1) to the KIN.

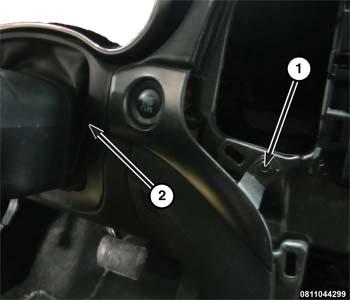

    Fig 3: Steering Column Surround Bezel & Screws
    GC0162907Courtesy of CHRYSLER GROUP, LLC
  3. Install and tighten (1) the KIN bezel to the instrument panel. The second screw is located on the steering shroud side of the bezel.
    Fig 4: Center Bezel Retaining Clips
    GC0145461Courtesy of CHRYSLER GROUP, LLC
  4. Install the instrument cluster bezel (1). Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
  5. Connect the negative battery cable.
  6. If the KIN is being replaced, perform the RFHM verification test. Refer to STANDARD PROCEDURE .
