Module, Adaptive Cruise Control: Installation: Bracket
WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The molded plastic ball socket clips in the ACC sensor mounting bracket MUST be removed, discarded and replaced with new ball socket clips any time the sensor is removed from the bracket.

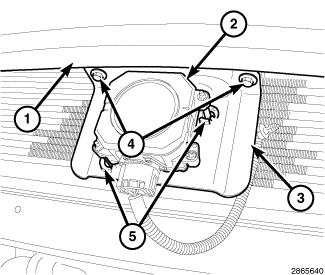

- Install three new molded plastic ball socket clips (5) into the adaptive speed control (also known as Adaptive Cruise Control/ACC) sensor mounting bracket (3) located below the center of the front bumper support bar (1). The clips are installed from the back side of the bracket by rotating them clockwise.
- Position the mounting bracket to the underside of the bumper support bar.
- Install and tighten the two screws (4) that secure the mounting bracket to the support bar. Tighten the screws securely.
- Reinstall the ACC sensor onto the mounting bracket. Refer to MODULE, ADAPTIVE CRUISE CONTROL, INSTALLATION .
