Module, Anti-Lock Brake System: Description: Description
WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the Antilock Brake System (ABS) module is replaced it must be initialized using the scan tool.

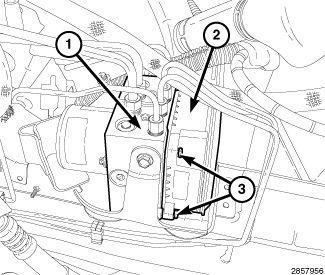

The ABS module (2) is mounted to the Hydraulic Control Unit (HCU) (1) and operates the ABS. The combined HCU and ABS module is located forward of the master cylinder, under the engine air box.
