Module, Keyless Ignition Node: Removal: Removal

WARNING: This page is about a different car, the 2014 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

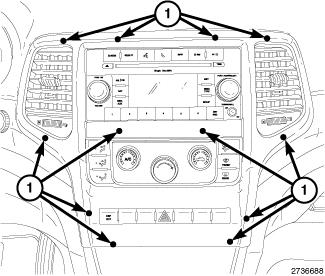

Fig 1: Center Bezel Retaining Clips
GC0145461Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster bezel (1). Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .

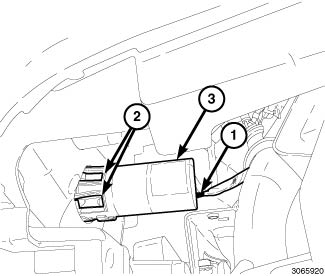

    Fig 2: Wire Connector, Clips & KIN
    GC0147718Courtesy of CHRYSLER GROUP, LLC
  3. Reach through the Integrated Center Stack (ICS) screen opening and disconnect the Keyless Ignition Node (KIN) electrical connector (1).
  4. Press on the three tabs (2) (two on top and one on bottom) and push the KIN (3) out the front of the instrument panel.
