Motor, Tilt: Installation: Installation

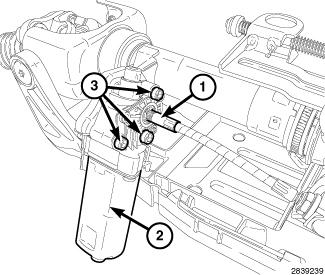

Fig 1: Tilt Motor, Three Bolts & Flex Drive

Courtesy of CHRYSLER GROUP, LLC

With the steering column on a flat bench, insert the flex drive (1) into the tilt motor (2).
Rotate the tilt motor into position and install on the steering column assembly.
Install the three bolts (3) to attach the tilt motor (2) to the steering column assembly and tighten to 4 N.m (35 in. lbs.)
Install the steering column. Refer to COLUMN, INSTALLATION .
Perform the memory seat module standardization procedure. Refer to STANDARD PROCEDURE .
