Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: F577100

Part Description: 52P Female MODULE I FOR ORC MODULE

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 52

Fig 1: Module-Occupant Restraint Controller C2 Connector End View
GCWD1006287Courtesy of CHRYSLER

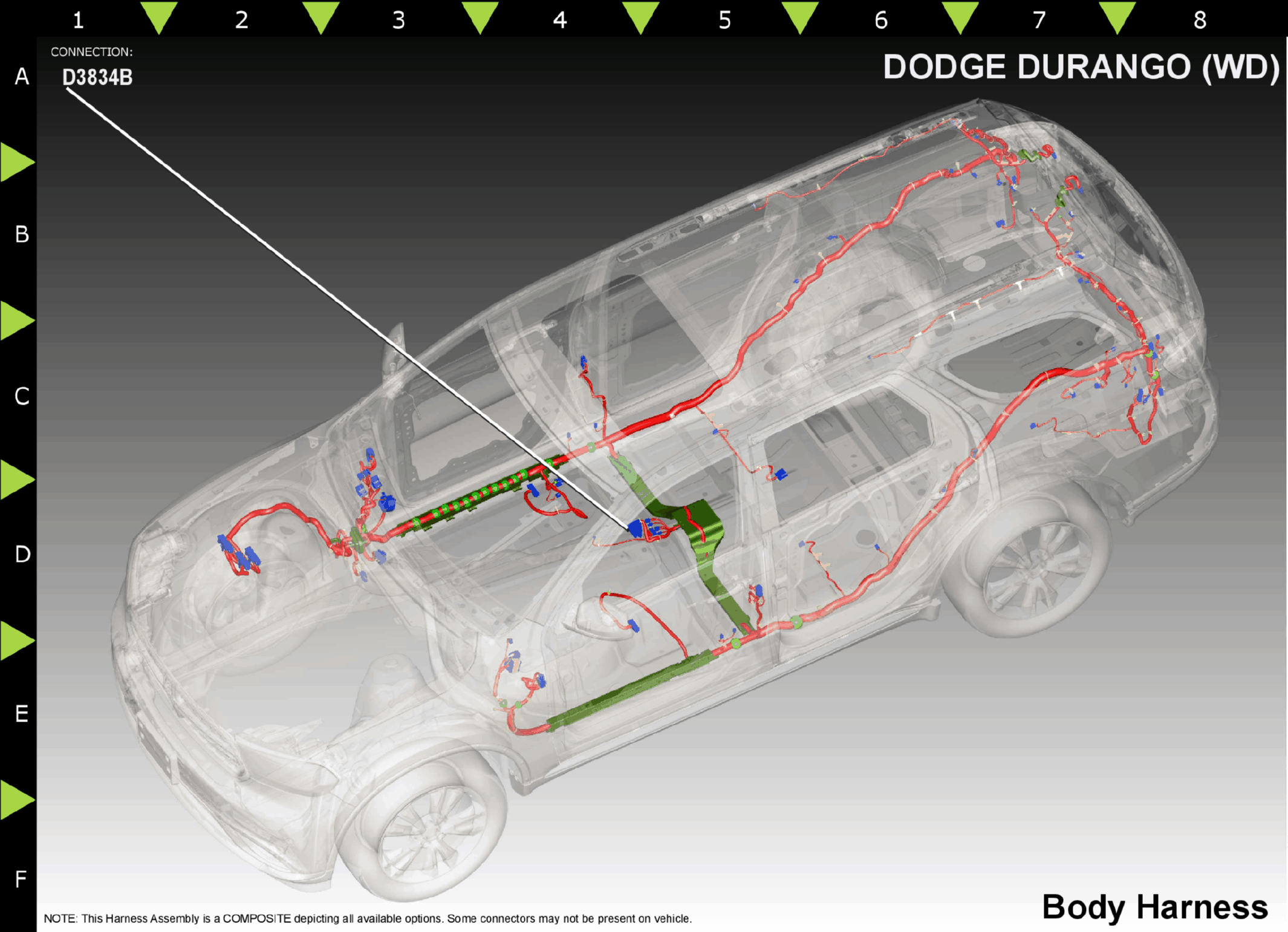

Fig 2: Module-Occupant Restraint Controller C2 Component Location
GCWD1163827Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
53 D12 YL 0.35 CAN C (-) N/A
54 D11 YL/DB 0.35 CAN C (+) N/A
55 R283 LB/DG 20 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
56 R284 LB/LG 20 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
57 R13 LG/TN 0.50 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
58 R15 LG/BR 0.50 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
59 R16 BR/LG 0.50 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
60 R14 TN/LG 0.50 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
61 R160 BR 0.75 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
62 R140 BG 0.75 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
63 R130 DB 0.75 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
64 R150 LG/DB 0.75 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
67 R24 YL/LB 0.50 RIGHT SIDE IMPACT SENSOR 3 GROUND N/A
68 R22 WT/LB 0.50 RIGHT SIDE IMPACT SENSOR 3 SIGNAL N/A
69 R21 LB/WT 0.50 LEFT SIDE IMPACT SENSOR 3 SIGNAL N/A
70 R23 LB/YL 0.50 LEFT SIDE IMPACT SENSOR 3 GROUND N/A
71 R58 LB/GY 20 PASSENGER SEAT BELT SWITCH SENSE N/A
72 R60 LB/TN 20 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
73 R57 LG/GY 20 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
74 R59 LG/TN 20 DRIVER SEAT BELT BUCKLE SWITCH GROUND N/A
75 R1 GY/WT 20 LEFT CURTAIN SQUIB 1 LINE 2 N/A
76 R3 DG/OR 20 LEFT CURTAIN SQUIB 1 LINE 1 N/A
77 R4 GY/LB 20 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
78 R2 DB/VT 20 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
83 R261 LB/WT 20 DRIVER SEAT POSITION SENSOR DATA N/A
84 R263 LB/VT 20 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
85 R82 WT/LB 0.50 RIGHT FRONT IMPACT SENSOR GROUND N/A
86 R80 VT/LB 0.50 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
87 R81 LB/WT 0.50 LEFT FRONT IMPACT SENSOR GROUND N/A
88 R79 LB/VT 0.50 LEFT FRONT IMPACT SENSOR SIGNAL N/A
89 R8 GY/LG 20 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
90 R6 VT/LB 20 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
91 R676 PK/WT 20 DRIVER ACTIVE HEAD RESTRAINT SIGNAL N/A
92 R677 PK/YL 20 PASSENGER ACTIVE HEAD RESTRAINT SIGNAL N/A
93 R5 LB/VT 20 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
94 R7 LG/GY 20 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
95 R506 LB/DG 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
96 R504 LB/YL 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
97 R503 LG/YL 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
98 R505 LG/DG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
101 Z913 BK 20 GROUND N/A
103 F945 PK/LG 0.50 IGNITION RUN/START CONTROL OUTPUT N/A
104 F929 PK/YL 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
(1) Pins not listed are not used for this connector
