Module-Occupant Restraint Controller C3 (D3834C)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: F477100

Part Description: 52P Female MODULE II FOR ORC MODULE

Connector No: D3834C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 52

Fig 1: Module-Occupant Restraint Controller C3 Connector End View

Courtesy of CHRYSLER

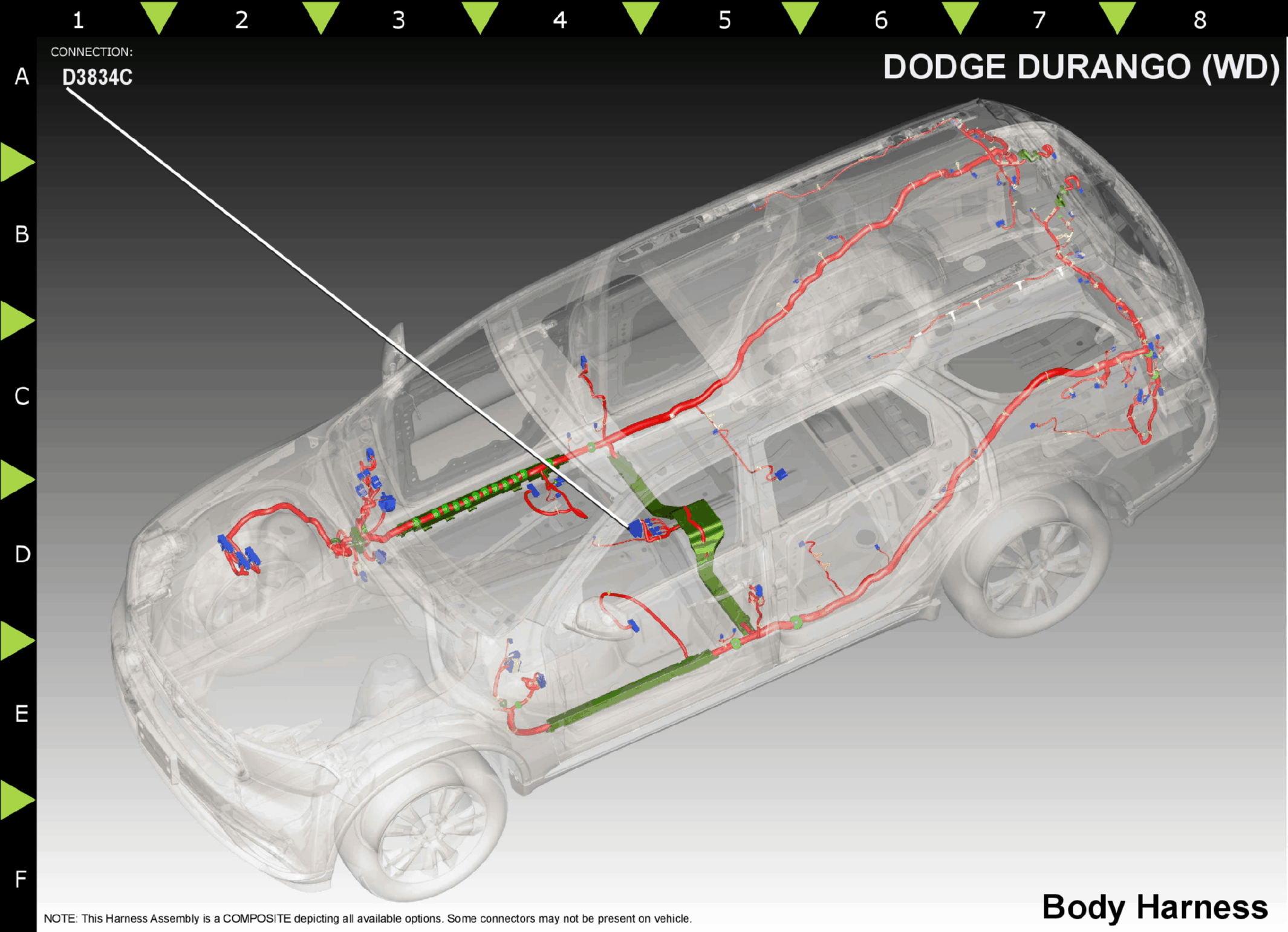

Fig 2: Module-Occupant Restraint Controller C3 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R20

WT/LG

0.50

RIGHT SIDE IMPACT SENSOR 2 GROUND

N/A

R18

0.50

RIGHT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R17

0.50

LEFT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R19

LG/WT

0.50

LEFT SIDE IMPACT SENSOR 2 GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
