Module-Powertrain Control C2 (D3821B)

Harness-Family: Engine

Color: TAN

Gender: FEMALE

Part Number: 1924779-1_1924941-1

Part Description: Not Available

Connector No: D3821B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 96

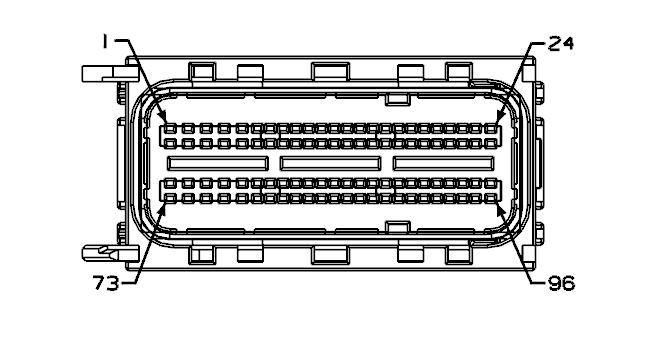

Fig 1: Module-Powertrain Control C2 Connector End View
GCWD1012472Courtesy of CHRYSLER

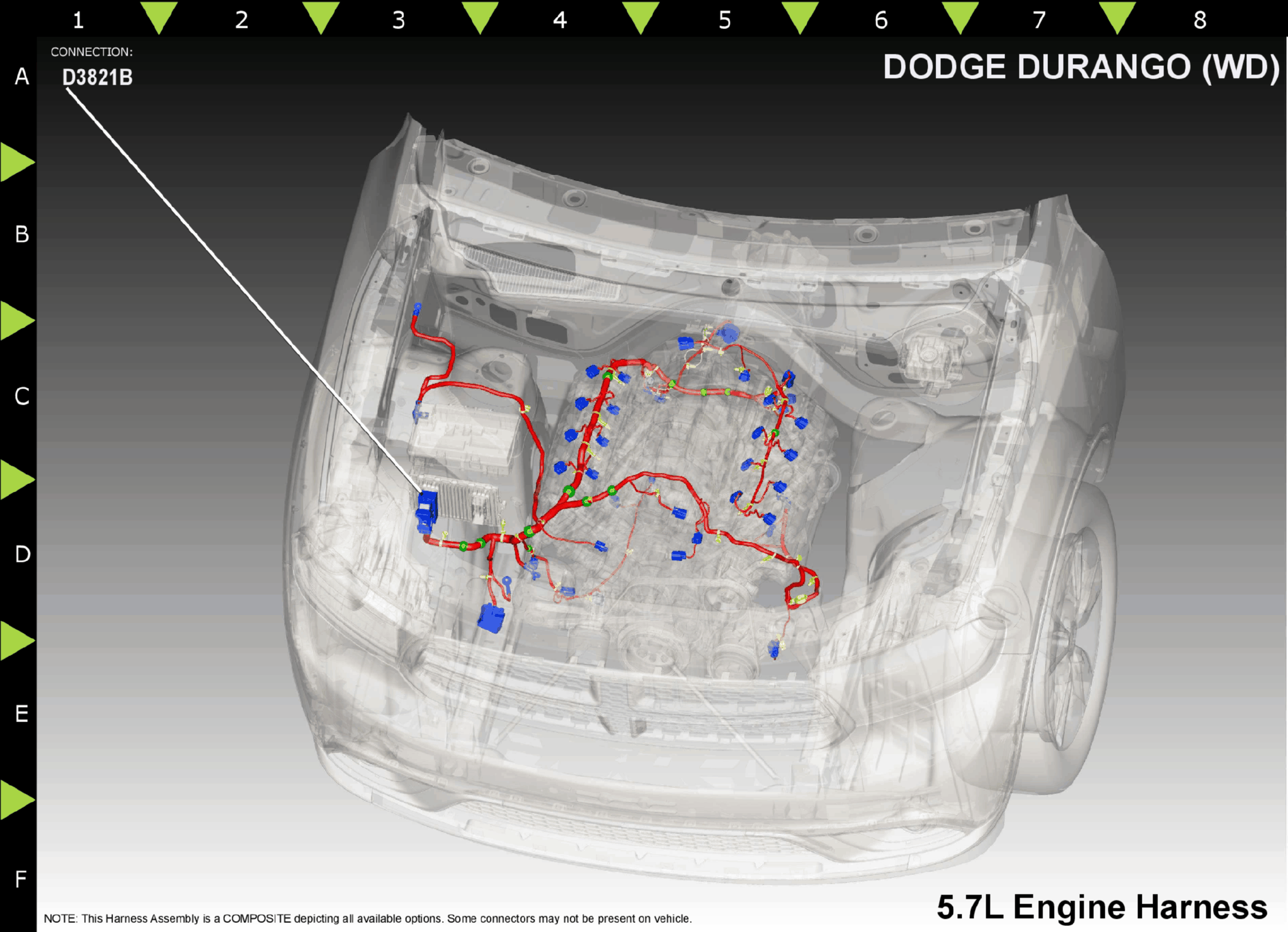

Fig 2: Module-Powertrain Control C2 Component Location
GCWD1163871Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K534 GY/YL 0.50 VVL SOLENOID 2/2 CONTROL 3.6L
1 K454 BR/OR 20 MDS SOL CONTROL 7 5.7L
3 K932 DB/LB 0.50 EGR TEMP SENSOR SIGNAL 3.6L
4 G60 VT/YL 0.50 OIL PRESSURE SIGNAL 3.6L
4 G6 VT/GY 0.75 OIL PRESSURE SIGNAL 5.7L
6 K532 VT/GY 0.50 VVL SOLENOID 1/2 CONTROL 3.6L
6 K452 BR/LB 20 MDS SOL CONTROL 4 5.7L
8 K11 BR/YL 0.75 INJECTOR CONTROL 1 N/A
9 K12 BR/DB 0.75 INJECTOR CONTROL 2 N/A
10 K13 BR/LB 0.75 INJECTOR CONTROL 3 N/A
11 K14 BR/TN 0.75 INJECTOR CONTROL 4 N/A
12 K2 VT/OR 0.50 ECT SIGNAL N/A
13 K242 BR/WT 0.50 KS 2 SIGNAL 3.6L
14 K42 DB/YL 0.50 KS 1 SIGNAL 3.6L
19 K141 DB/YL 0.50 O2 1/2 SIGNAL N/A
20 K904 DB/DG 0.50 O2 RETURN (DOWNSTREAM) N/A
21 K243 BR 0.50 O2 2/2 SIGNAL N/A
22 K276 DB/WT 0.50 VVT EXHAUST CONTROL 3.6L
22 K442 DB 20 VCT CONTROL 5.7L
23 K76 BR/WT 0.50 VVT INTAKE CONTROL 3.6L
24 K99 BR/LG 1.0 O2 1/1 HEATER CONTROL N/A
25 K533 GY 0.50 VVL SOLENOID 2/1 CONTROL 3.6L
25 K453 BR/DG 20 MDS SOL CONTROL 6 5.7L
29 T762 DG/YL 0.50 STOP/START PCR RELAY CONTROL 3.6L
31 K531 VT 0.50 VVL SOLENOID 1/1 CONTROL 3.6L
31 K451 BR/WT 20 MDS SOL CONTROL 1 5.7L
32 K20 BR/GY 0.75 GEN FIELD CONTROL N/A
33 K447 TN/YL 0.50 ETC MOTOR (+) N/A
34 K448 TN/OR 0.50 ETC MOTOR (-) N/A
35 A804 RD/VT 0.50 GEN SENSE N/A
37 K924 WT/BR 0.50 KS 2 RETURN 3.6L
38 K942 BR/LG 0.50 KS 1 RETURN 3.6L
39 K41 DB/LB 0.50 O2 1/1 SIGNAL N/A
40 K902 BR/DG 0.50 O2 RETURN (UPSTREAM) N/A
41 K43 DB/LG 0.50 O2 2/1 SIGNAL N/A
43 G224 VT/YL 0.50 EOT SIGNAL 3.6L
43 G24 VT/BR 0.50 EOT SIGNAL 5.7L
44 K21 DB/LG 0.50 IAT SIGNAL 3.6L
45 K1 VT/BR 0.50 MAP SIGNAL 3.6L
48 K299 BR/WT 1.0 O2 1/2 HEATER CONTROL SUPPLY N/A
49 K18 DB/OR 1.0 COIL CONTROL 3 N/A
50 K17 DB/TN 1.0 COIL CONTROL 2 N/A
51 K19 DB/DG 1.0 COIL CONTROL 1 N/A
55 K682 DB/WT 0.50 EGR CONTROL 1 3.6L
56 K684 DB/YL 0.50 EGR CONTROL 2 3.6L
57 K683 DB/GY 0.50 EGR SIGNAL 3.6L
61 K445 DB/DG 0.50 CMP SIGNAL 4 3.6L
62 K441 DB/BR 0.50 CMP SIGNAL 2 3.6L
63 K444 DB/TN 0.50 CMP SIGNAL 3 3.6L
65 K922 BR/DB 0.50 TP SENSOR RETURN N/A
66 K900 DB/DG 0.50 SENSOR GROUND N/A
67 F855 PK/YL 0.50 5 VOLT SUPPLY N/A
68 K915 BR/WT 0.50 SENSOR GROUND N/A
72 K199 BR/VT 1.0 O2 2/1 HEATER CONTROL N/A
73 K15 DB/GY 1.0 COIL CONTROL 4 N/A
74 K16 DB/YL 1.0 COIL CONTROL 5 N/A
75 K10 DB 1.0 COIL CONTROL 6 3.6L
76 K97 BR 1.0 COIL CONTROL 7 5.7L
77 K98 DB/YL 1.0 COIL CONTROL 8 5.7L
79 K38 BR/OR 0.75 INJECTOR CONTROL 5 N/A
80 K58 BR/VT 0.75 INJECTOR CONTROL 6 N/A
81 K26 BR/YL 0.75 INJECTOR CONTROL 7 5.7L
82 K28 BR/LB 0.75 INJECTOR CONTROL 8 5.7L
83 T753 DG/YL 0.50 IGNITION CRANK SENSE 3.6L
85 K44 DB/GY 0.50 CMP SIGNAL 3.6L
86 K24 BR/LB 0.50 CKP SIGNAL N/A
87 F856 YL/PK 0.50 5 VOLT SUPPLY N/A
88 K925 DB/GY 0.50 CKP GROUND N/A
89 K22 BR/OR 0.50 TP 1 SIGNAL N/A
90 K122 BR/DG 0.50 TP 2 SIGNAL N/A
93 G62 VT/YL 0.50 OIL PRESSURE SOL CONTROL 3.6L
94 K78 BR 0.50 VVT INTAKE CONTROL 2 3.6L
95 K277 DB 0.50 VVT EXHAUST CONTROL 2 3.6L
96 K399 BR/GY 1.0 O2 2/2 HEATER CONTROL N/A
(1) Pins not listed are not used for this connector
