Module, Blind Spot: Removal: Removal

WARNING: This page is about a different car, the 2015 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

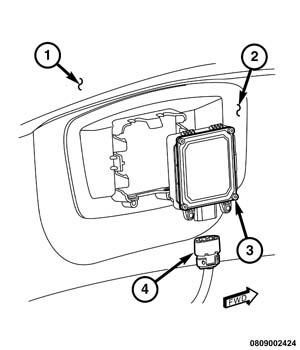

Fig 1: Blind Spot Monitor Sensor
GC0158328Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery.
  2. Remove the rear bumper fascia (1) from the vehicle. Refer to FASCIA, REAR, REMOVAL .
  3. Disconnect the rear bumper fascia wire harness connector (4) from the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (3) connector receptacle.
  4. Disengage the latch tabs of the BSM sensor mounting bracket (2) and pull the LBSS or RBSS out of the bracket.
