Module, Anti-Lock Brake System: Description: Description
WARNING: This page is about a different car, the 2015 RAM ProMaster 3500, 2015 RAM ProMaster 2500, and 2015 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
The Antilock Brake Module (ABM) is a microcontroller-based device which monitors the antilock brake system (ABS) during normal braking and controls it when the vehicle is in an ABS stop or when in a traction control situation. The ABM utilizes a 38-way electrical connector on the vehicle wiring harness. The power source for the ABM is through the ignition switch in the RUN or ON position.

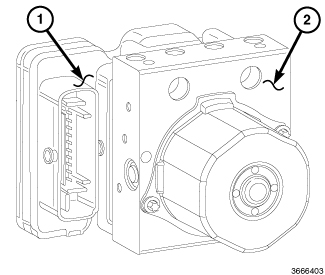

The ABM (1) is mounted to the HCU (2) as part of the Integrated Control Unit (ICU). The ICU is located in the engine compartment below the master cylinder on the front suspension cradle/crossmember. For information on the ICU, refer to INTEGRATED CONTROL UNIT (ICU), DESCRIPTION .
