Module, Transmission Control: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM ProMaster 3500, 2015 RAM ProMaster 2500, and 2015 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

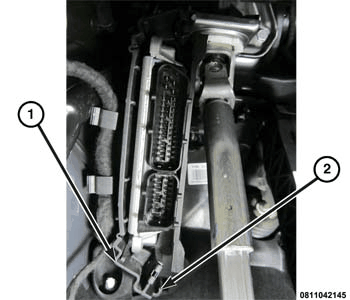

Fig 1: Lower TCM Bracket End & Release Tab
GC0161870Courtesy of CHRYSLER GROUP, LLC
  1. Slide the Transmission Control Module (TCM) into the mounting bracket.
  2. Close the lower TCM bracket tab (1) by snapping the tab (2) onto the bracket.

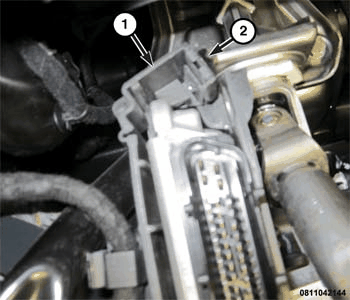

    Fig 2: Upper TCM Bracket End & Release Tab
    GC0162036Courtesy of CHRYSLER GROUP, LLC
  3. Close the upper TCM bracket tab (1) by snapping the tab (2) onto the bracket.

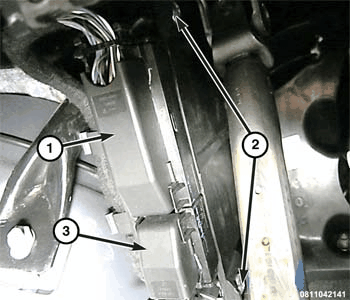

    Fig 3: TCM Connectors & Screws
    GC0161764Courtesy of CHRYSLER GROUP, LLC
  4. Install the TCM bracket screws (2).
  5. Connect the wire harness connectors (1, 3) to the TCM.

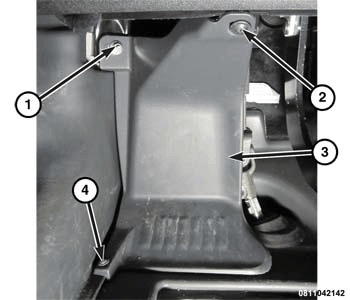

    Fig 4: Left Kick Panel, Nut & Screws
    GC0162012Courtesy of CHRYSLER GROUP, LLC
  6. Position the left kick panel (3) into place.
  7. Install the kick panel screws (2, 4) and tighten securely.
  8. Install the kick panel nut (1).
  9. If necessary, perform the verification test procedure. Refer to TRANSMISSION VERIFICATION TEST .
