Description And Operation: Description

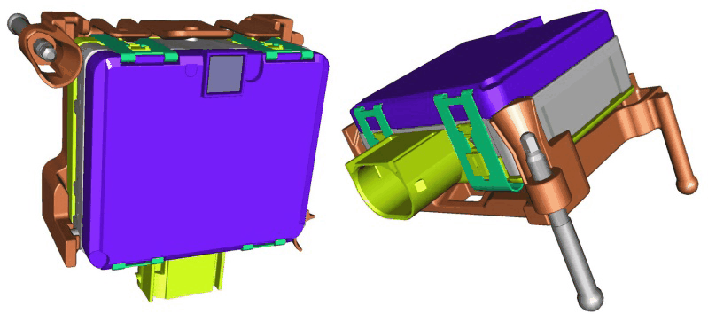

Fig 1: Adaptive Cruise Control Module

Courtesy of CHRYSLER GROUP, LLC

The ACC sensor contains the software required to operate normal Cruise Control, ACC+, and FCW+. The ACC sensor determines the distance to a target vehicle and the speed at which the target vehicle is approached. If the ACC sensor determines that intervention is required, the ACC sensor sends a message to other modules over CAN-C to activate audible, visual and haptic warnings. The ACC sensor also sends torque requests to the PCM and brake requests to the ABS module.

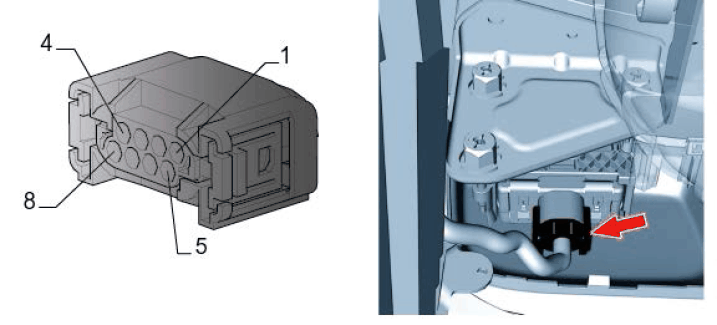

Fig 2: Adaptive Cruise Control Module Connector Terminal Identification

Courtesy of CHRYSLER GROUP, LLC

ACC pinout

1. Ground
2. CAN 1 H
3. CAN 1 L
4. N.C.
5. Private CAN
6. Private CAN
7. N.C.
8. 12V power supply
