Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Lower the top portion of the liftgate weatherstrip.

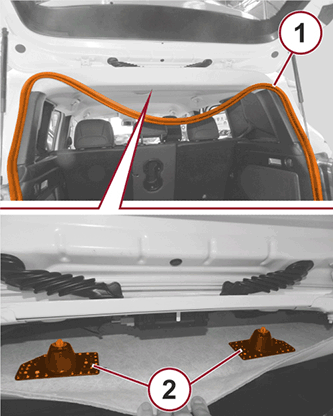

Fig 1: Weatherstrip & Retainers
Courtesy of CHRYSLER GROUP, LLC
With the proper tool, remove the retainers (2).

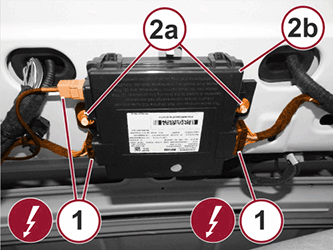

Fig 2: RFH Module, Connectors & Nuts
Courtesy of CHRYSLER GROUP, LLC
Slightly lower the rear of the headlining and disconnect the electrical connections of the RFHM.
Remove the nuts (2a) and remove the RFHM (2b).
