Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For RA4 radios, if possible, the version of the map and Point Of Interest (POI) data should be noted before the original radio is replaced with a new unit. If the version of the map and POI data found on the new radio is not equal to or newer than the version that is found, updated data will need to be downloaded and installed to the new radio at the expense of the dealer. For the Navigation system restore and update procedures, refer to STANDARD PROCEDURE .

Fig 1: Center Trim Bezel & Tabs

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

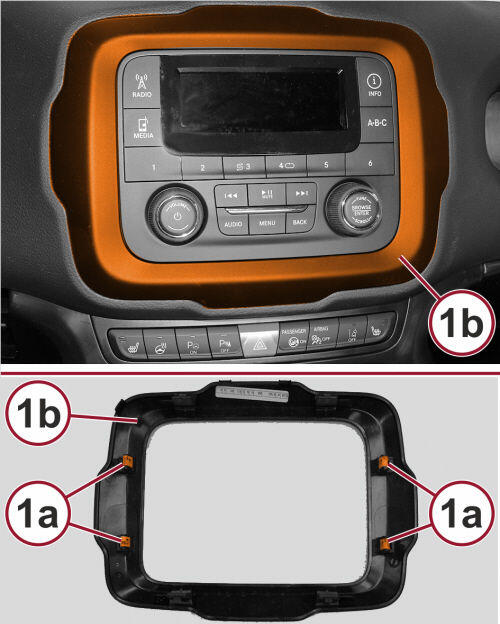

Using trim stick C-4755 or equivalent, remove the center trim bezel (1b) from the instrument panel.

Fig 2: Radio & Screws
Courtesy of CHRYSLER GROUP, LLC

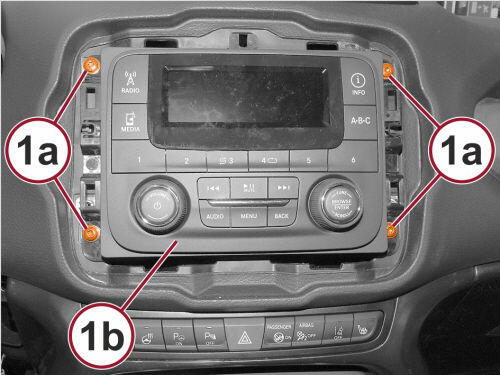

Remove the four screws (1a) securing the radio (1b) to the instrument panel.
Pull the radio out far enough to access the back of the radio.

Fig 3: Radio Receiver Module Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the antenna cables (3), and radio wire harness connector (2).
If equipped, disconnect the USB connector (1).
Remove the radio from the instrument panel.
