Module, Electronic Shift (ESM): Installation

GC0170239Courtesy of CHRYSLER GROUP, LLC
  1. Position the shifter assembly in place and connect the shifter wire harness connector (1).

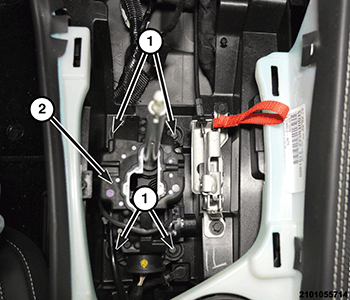

    GC0170142Courtesy of CHRYSLER GROUP, LLC
  2. Install the shifter bolts (1) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

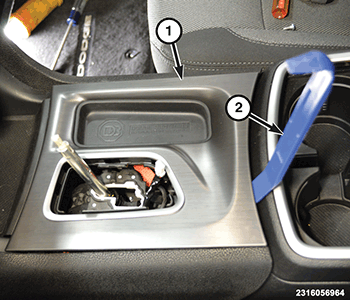

    GC0170250Courtesy of CHRYSLER GROUP, LLC
  3. Install the shifter bezel panel (1).

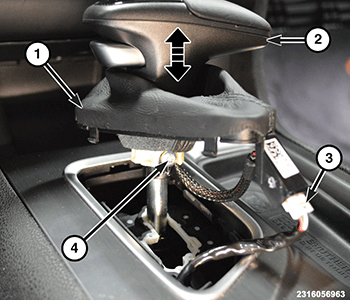

    GC0170308Courtesy of CHRYSLER GROUP, LLC
  4. Install the shifter knob (2) and bezel (1).
  5. Install the shifter knob screw (4).
  6. Connect the shifter wire harness connector (3).
