Module, Fuel Pump Control: Installation

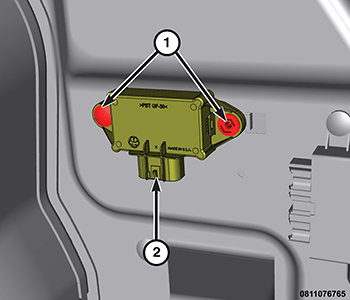

GC0170087Courtesy of CHRYSLER GROUP, LLC
  1. Position the Fuel Pump Control Module (FPCM) to the right quarter inner panel above and behind the right rear wheel house.
  2. Securely install the fasteners (1) that secure the FPCM to the right quarter inner panel.
  3. Connect the body wire harness connector (2) to the FPCM connector receptacle.
  4. Install the right trunk carpet. Refer to CARPET, INSTALLATION .
  5. Connect the negative battery cable.
