Module, Instrument Panel Cluster: Installation

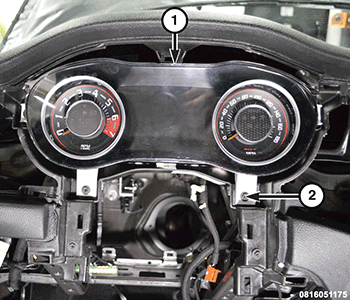

GC0170265Courtesy of CHRYSLER GROUP, LLC
  1. Position the cluster (1) into instrument panel opening and connect the electrical connector.
  2. Install the four (2) screws that secure the instrument cluster (1) to the instrument panel.
  3. Install the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, INSTALLATION .
  4. Connect the negative battery cable.
    NOTE:

    If the cluster has been replaced, the replacement cluster should be programmed with the correct mileage. Verify the correct mileage via Scan Tool.
