Module, Radio Antenna: Installation: Module

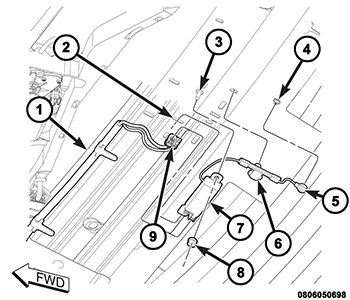

GC0170382Courtesy of CHRYSLER GROUP, LLC
  1. Position the antenna module (7) to the roof rear header panel (1) in the vehicle.
  2. Engage the right mounting tab of the antenna module into the slot (2) in the roof rear header panel.
  3. Engage the left mounting tab of the antenna module onto the weld stud (3) on the roof rear header panel.
  4. Install and tighten the nut (8) that secures the left mounting tab of the antenna module to the weld stud on the roof rear header panel. Tighten the nut securely.
  5. Engage the antenna module pigtail wire retainer (6) into the slot in the roof rear header panel.
  6. Reconnect the antenna module pigtail wire connector (5) to the on-glass antenna grid terminal (4).
  7. Reconnect the body wire harness connections (9) to the antenna module.
  8. Reinstall the headliner onto the inner roof panel. Refer to HEADLINER, INSTALLATION .
  9. Reinstall the rear seat back into the vehicle. Refer to SEAT BACK, REAR, INSTALLATION .
  10. Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
