Module-Occupant Restraint Controller C2

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: F847100_F477100_F577100

Part Description: Not Available

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

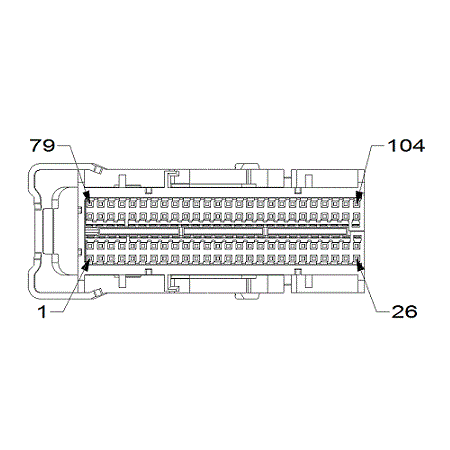

Fig 1: Module-Occupant Restraint Controller C2 Connector End View
GCWD1011402Courtesy of CHRYSLER

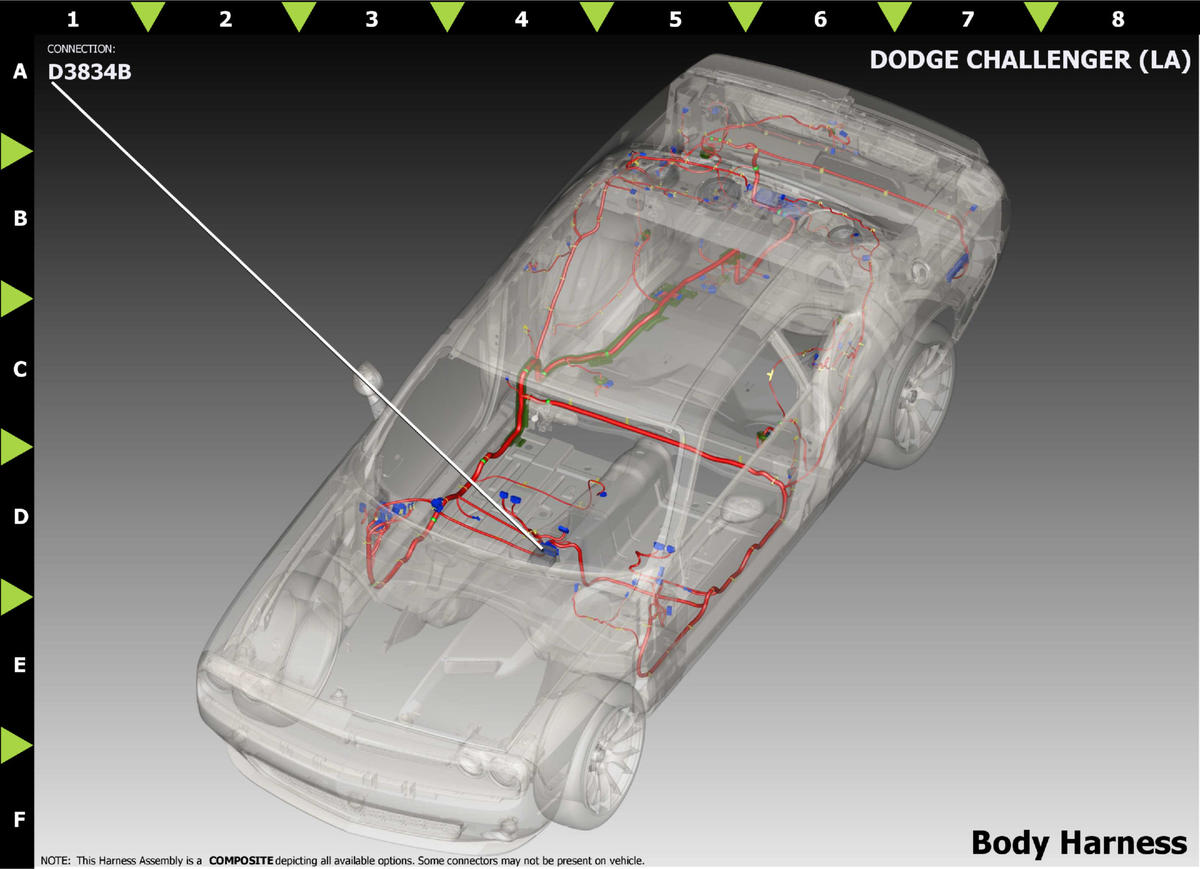

Fig 2: Module-Occupant Restraint Controller C2 Component Location
GCWD1220446Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R20 WH/GN 0.50 RIGHT SIDE IMPACT SENSOR 2 GROUND N/A
2 R18 BU 0.50 RIGHT SIDE IMPACT SENSOR 2 SIGNAL N/A
3 R17 GN 0.50 LEFT SIDE IMPACT SENSOR 2 SIGNAL N/A
4 R19 GN/WH 0.50 LEFT SIDE IMPACT SENSOR 2 GROUND N/A
53 D12 YE 0.35 CAN C (-) N/A
54 D11 YE/DB 0.35 CAN C (+) N/A
55 R283 BU/DG 0.50 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
56 R284 WH/BG 0.50 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
57 R13 GN/BG 0.50 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
58 R15 GN/BN 0.50 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
59 R16 BN/GN 0.50 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
60 R14 BG/GN 0.50 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
61 R160 BN 0.50 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
62 R140 BG 0.50 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
63 R130 DB 0.50 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
64 R150 GN/DB 0.50 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
71 R58 BU/GY 0.50 PASSENGER SEAT BELT SWITCH SENSE N/A
72 R60 BU/BG 0.50 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
73 R57 GN/GY 0.50 DRIVER SEAT BELT BUCKLE SWITCH SENSE N/A
74 R59 GN/BG 0.50 DRIVER SEAT BELT BUCKLE SWITCH GROUND N/A
75 R1 GY/WH 0.8 LEFT CURTAIN SQUIB 1 LINE 2 N/A
76 R3 DG/OG 0.8 LEFT CURTAIN SQUIB 1 LINE 1 N/A
77 R4 GY/BU 0.8 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
78 R2 DB/VT 0.8 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
79 R53 GN/YE 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
80 R55 GN/DG 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
81 R56 BU/DG 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
82 R54 BU/YE 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
83 R261 BU/WH 0.50 DRIVER SEAT POSITION SENSOR DATA N/A
85 R82 WH/BU 0.50 RIGHT FRONT IMPACT SENSOR GROUND N/A
86 R80 VT/BU 0.50 RIGHT FRONT IMPACT SENSOR SIGNAL N/A
87 R81 BU/WH 0.50 LEFT FRONT IMPACT SENSOR GROUND N/A
88 R79 BU/VT 0.50 LEFT FRONT IMPACT SENSOR SIGNAL N/A
89 R8 GY/GN 0.50 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
90 R6 VT/BU 0.50 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
93 R5 BU/VT 0.50 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
94 R7 GN/GY 0.50 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
95 R506 BU/DG 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
96 R504 BN/YE 0.50 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
97 R503 BN/WH 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
98 R505 GN/DG 0.50 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
103 F201 PK/OG 0.50 FUSED IGNITION RUN/START CONTROL OUTPUT N/A
104 F100 PK/VT 0.50 FUSED IGNITION RUN CONTROL OUTPUT N/A
(1) Pins not listed are not used for this connector
