Module-Body Control C5/E

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 13850164_13850160_13850161

Part Description: Not Available

Connector No: D3806E

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 48

Fig 1: Module-Body Control C5/e Connector End View
GCWD1014424Courtesy of CHRYSLER

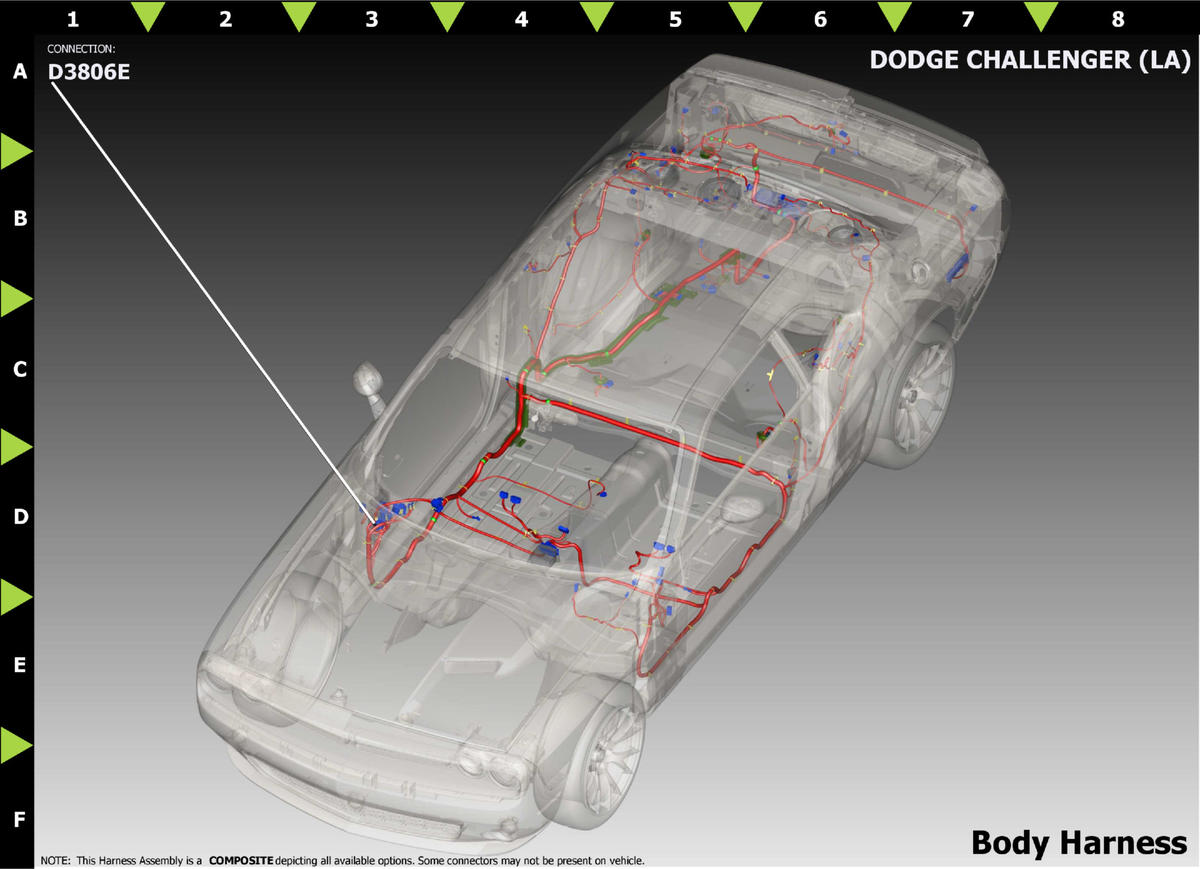

Fig 2: Module-Body Control C5/e Component Location
GCWD1220178Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L16 WH/OG 0.50 RIGHT BACKUP LAMP DRIVER N/A
2 L71 WH/GY 0.50 LEFT REAR PARK LAMP DRIVER N/A
3 L63 WH/DG 0.50 LEFT REAR TURN LAMP DRIVER N/A
4 L72 WH/OG 0.50 RIGHT REAR PARK LAMP DRIVER N/A
6 P305 GN/BU 0.50 ACCESSORY DELAY RELAY CONTROL N/A
9 P307 GN/GY 0.50 ACCESSORY DELAY RELAY CONTROL N/A
11 B25 DG/WH 0.50 PARK BRAKE SWITCH SENSE N/A
14 L555 WH/BN 0.50 LEFT STOP LAMP FAULT SENSE N/A
15 N5 DB/GY 0.50 FUEL LEVEL SIGNAL 2 N/A
16 G109 BK 0.50 FUEL LEVEL SENSE RETURN N/A
17 N4 DB/WH 0.50 FUEL LEVEL SENSOR SIGNAL N/A
18 L3 WH/DB 0.50 LICENSE PLATE LAMP DRIVER N/A
20 L310 BG/WH 0.50 RIGHT HEADLAMP RELAY CONTROL N/A
25 D45 BN 0.35 CAN C (+) N/A
26 D46 YE 0.35 CAN C (-) N/A
27 F20 PK/WH 0.35 IGNITION RUN/START CONTROL OUTPUT N/A
29 T22 YE/VT 0.50 BACKUP LAMP SWITCH SIGNAL N/A
31 F1 PK/WH 0.50 IGNITION OFF/RUN/START CONTROL OUTPUT N/A
36 K619 BN/OG 0.50 IGNITION RUN CONTROL OUTPUT N/A
(1) Pins not listed are not used for this connector
