Module-Body Control C7/G

Harness-Family: IP

Color: BLUE

Gender: FEMALE

Part Number: 13687849_13850159

Part Description: Not Available

Connector No: D3806G

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 24

Fig 1: Module-Body Control C7/g Connector End View

Courtesy of CHRYSLER

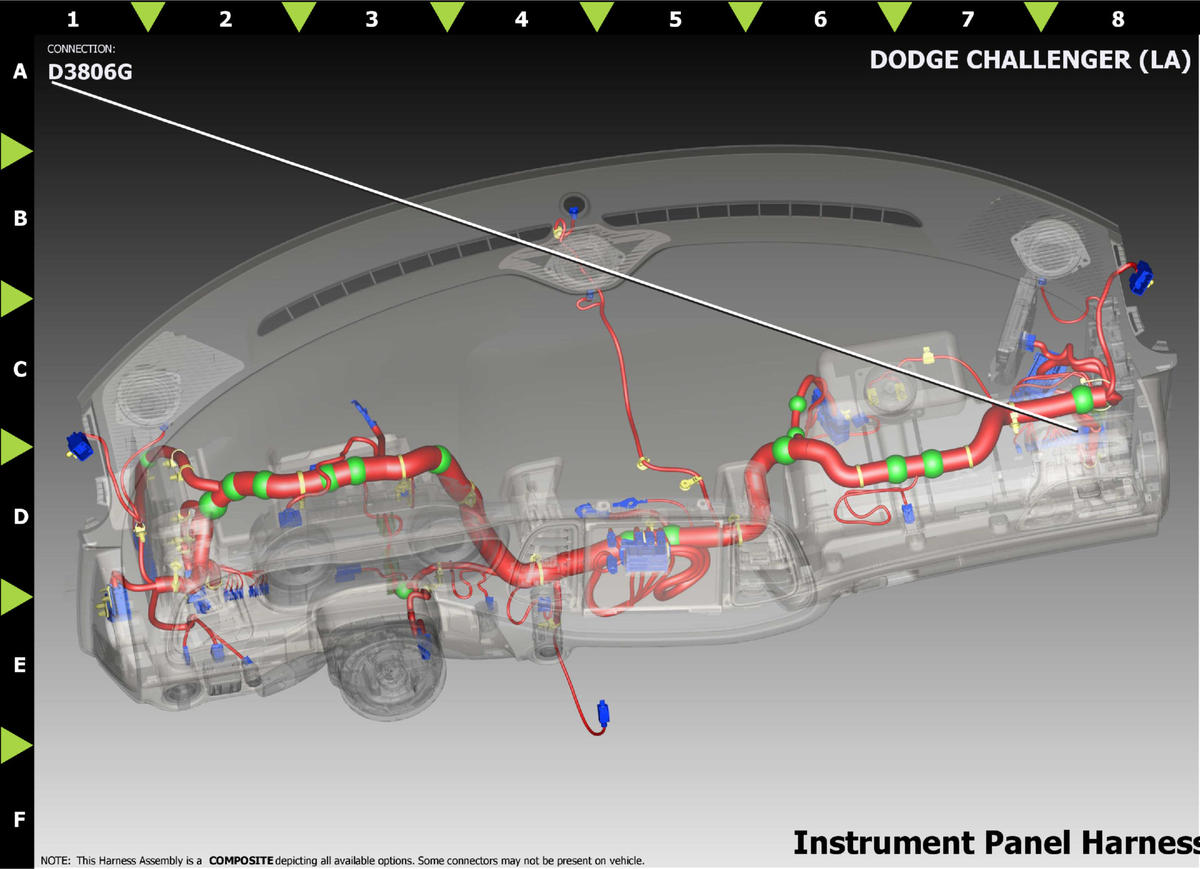

Fig 2: Module-Body Control C7/g Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

D145

WH/GN

0.35

CAN IHS (+)

N/A

D146

0.35

CAN IHS (-)

N/A

D402

OG/VT

0.35

LIN BUS CBC 2

N/A

D401

0.35

LIN BUS 1

N/A

P223

GN/WH

0.35

DECKLID/LIFTGATE RELEASE SWITCH SENSE

N/A

OG/YE

0.35

PANEL LAMPS DIMMER SWITCH MUX

N/A

M27

YE/BU

0.50

READING LAMPS DRIVER

N/A

M11

YE/VT

0.50

COURTESY LAMPS DRIVER

N/A

G38

0.35

UGDO ENABLE CONTROL CIRCUIT

N/A

L900

WH/YE

0.35

HEADLAMP SWITCH MUX RETURN

N/A

OG/BN

0.35

PANEL LAMPS DRIVER

N/A

L307

WH/BN

0.35

HEADLAMP SWITCH MUX

N/A

L91

WH/DB

0.35

HAZARD SWITCH SENSE

N/A

G84

VT/GY

0.35

VTA WARNING INDICATOR

N/A

WH/DG

0.35

FOOTWELL LAMP FEED FT LT

N/A

⁽¹⁾	Pins not listed are not used for this connector
