Module-Keyless Ignition Node

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 776204-2

Part Description: INSULATOR

Connector No: D2664A

Option: Standard

Repair Kit Part Number: 05183472AA

Cavity Count: 6

Fig 1: Module-Keyless Ignition Node Connector End View

Courtesy of CHRYSLER

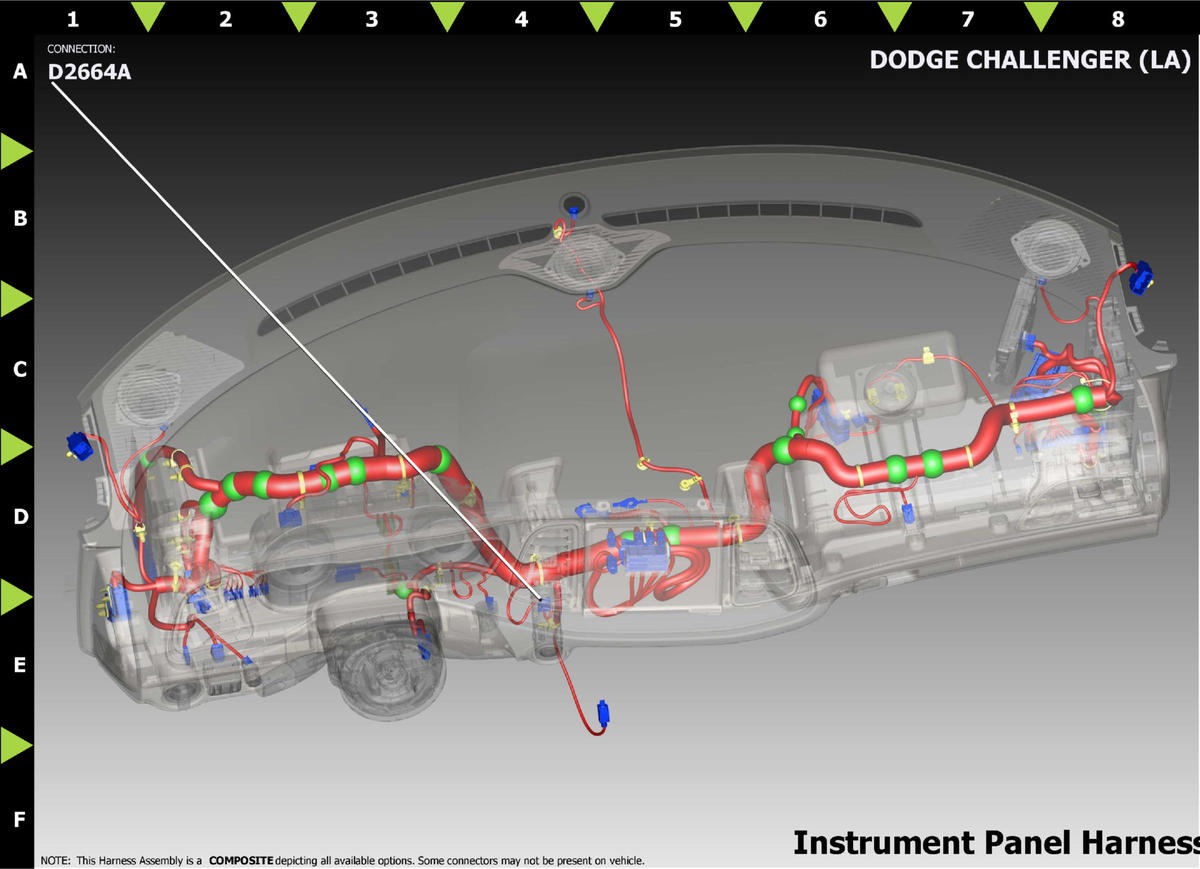

Fig 2: Module-Keyless Ignition Node Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

G201

VT/BU

0.50

IGNITION SWITCH POSITION SIGNAL

N/A

D122

WH/GN

0.50

SECURITY K LINE COMMUNICATION

N/A

A910

RD/GN

0.75

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
