Module-Occupant Restraint Controller C1

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: F067100

Part Description: 20P Female MODULE FOR ORC MODULE

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 20

Fig 1: Module-Occupant Restraint Controller C1 Connector End View

Courtesy of CHRYSLER

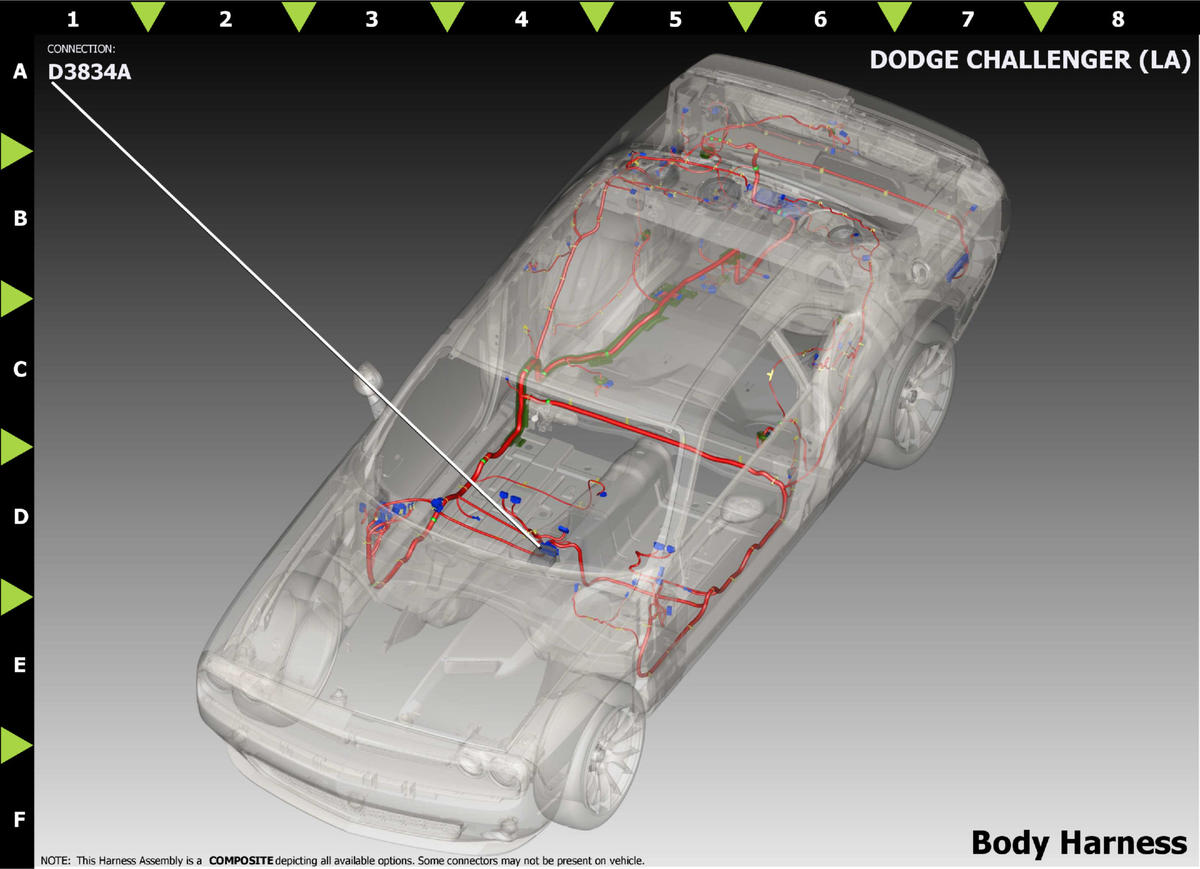

Fig 2: Module-Occupant Restraint Controller C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R61

GN/VT

0.50

DRIVER SQUIB 2 LINE 2

N/A

R63

DB/WH

0.50

DRIVER SQUIB 2 LINE 1

N/A

R42

DG/BN

0.50

PASSENGER SQUIB 1 LINE 2

N/A

R44

GY/OG

0.50

PASSENGER SQUIB 1 LINE 1

N/A

R45

GN/OG

0.50

DRIVER SQUIB 1 LINE 1

N/A

R43

BU/BN

0.50

DRIVER SQUIB 1 LINE 2

N/A

Z918

0.75

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
