Module, Powertrain Control (Pcm): Removal

  1. Disconnect and isolate the negative battery cable.
  2. Remove the hood ajar switch. Refer to SWITCH, HOOD AJAR, REMOVAL .

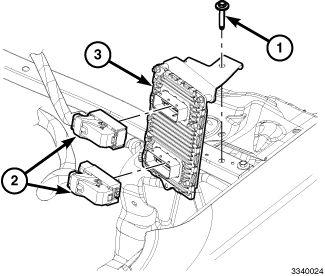

    GC0144877Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Powertrain Control Module (PCM) retaining bolt (1).
  4. Disconnect the PCM electrical connectors (2).
  5. Remove the PCM (3) from the vehicle.

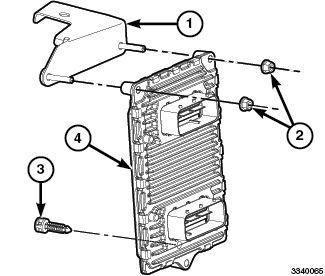

    GC0144878Courtesy of CHRYSLER GROUP, LLC
  6. If required, remove the NVH rubber bumper (3) from the PCM (4).
  7. If required, remove the PCM mounting bracket (1) retaining nuts (2) and remove the bracket.
