Digital Networks

The vehicle features an electrical/electronic architecture called Next-Generation Atlantis Architecture. Data transmission between the various ECUs in the Atlantis architecture occurs through the following digital networks:

• CAN-C1 (high-speed 500 kb/s)
• CAN-C2 (high-speed 500 kb/s)
• CAN-BH (medium-speed 125 kb/s)

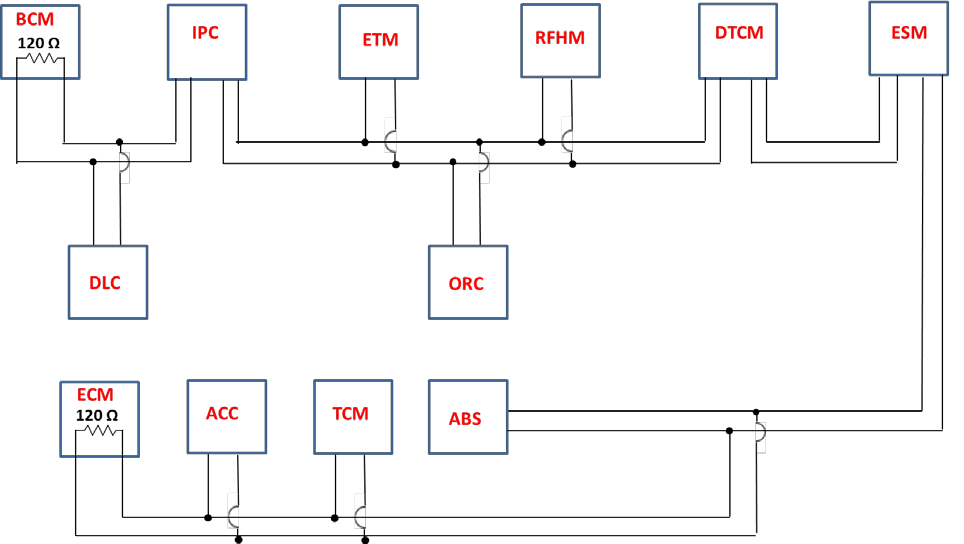

Fig 1: CAN-C1 Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

CAN-C1

The ECUs interconnected by the CAN-C1 are:

• BCM (Body Control Module)
• IPC (Instrument Panel Cluster)
• ETM (Entertainment Telematic Module - Infotelematic Module VP2 with Nav or VP4)
• ORC (Occupant Restraint Control - Airbag module)
• RFH (Radio Frequency Module)
• DTCM (Drive Train Control Module - Transmission Module)
• ESM (Electronic Shifter Module - Automatic transmission selector lever module)
• ABS (Anti-lock Braking System Module)
• ACC (Adaptive Cruise Control Module)
• TCM (Automatic Transmission Control Module)
• ECM (Engine Control Module)

CAN-C1 reaches the DLC multiple diagnosis connector.

The 120-ohm terminal resistors of the CAN-C1 are located in the BCM and in the ECM.

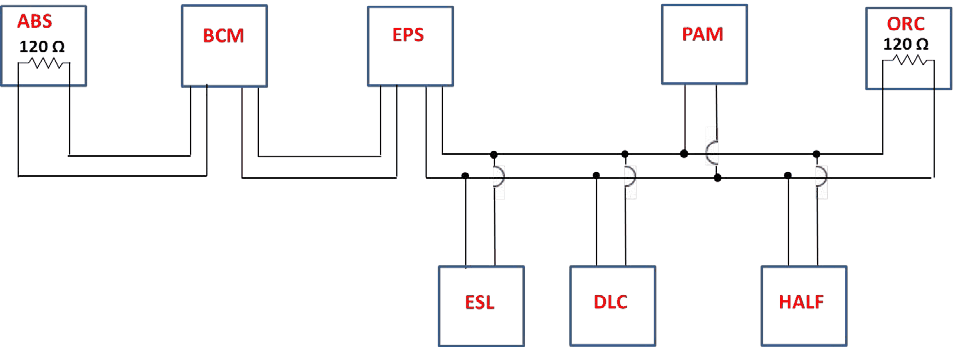

Fig 2: CAN-C2 Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

CAN-C2

The CAN-C2 manages the data which is exchanged at high speed between the ECU modules of the vehicle chassis.

The control units interconnected by the CAN-C2 are:

• ABS (Anti-lock Braking System Module)
• BCM (Body Control Module)
• ESL (Electric Steering Wheel - Steering Lock Module)
• PAM (Parking Aid Module)
• EPS (Electric Power Steering Module.)
• HALF (Haptic Lane Feedback - Lane maintenance assistance module)
• ORC (Occupant Restraint Control)

The CAN-C2 is in the DLC multiple diagnosis connector.

The 120-ohm terminal resistors are in the ABS module and the ORC Airbag module.

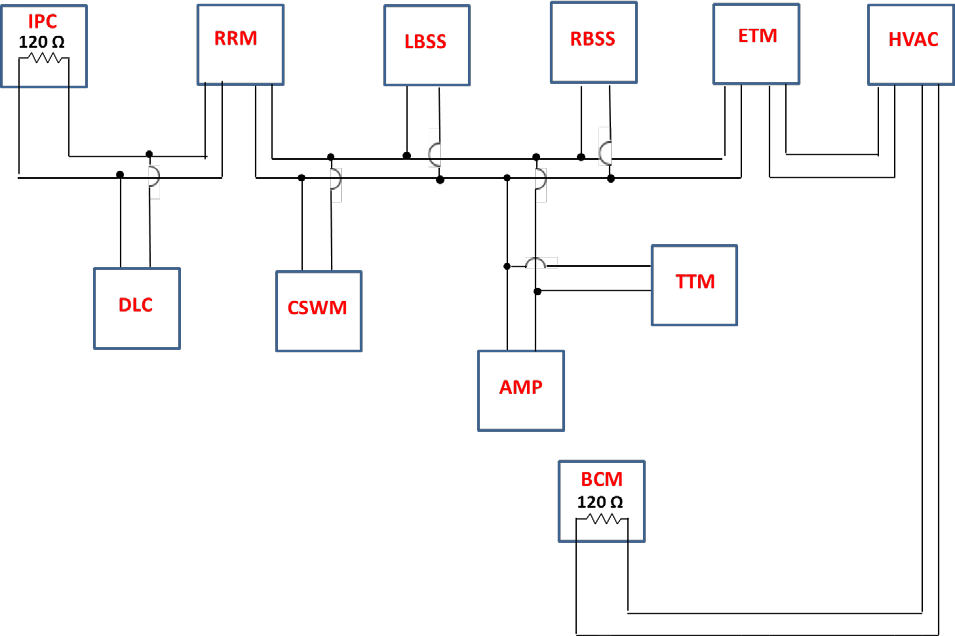

Fig 3: CAN-BH Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

CAN-BH

The CAN-BH manages the data exchanged at medium speed between the electronic modules which manage the passenger compartment comfort on the vehicle.

The control units interconnected by the CAN-BH are:

• IPC (Instrument Panel Cluster)
• RRM (Radio Receiver Module)
• CSWM (Comfort Seat Wheel Module - Seat and Steering Wheel Heating Module)
• LBSS (Left Blind Spot Sensor)
• RBSS (Right Blind Spot Sensor)
• AMP (Amplifier - Hi-Fi system amplifier)
• TTM (Trailer Tow Module - Tow Hook Module)
• HVAC (Heating Ventilation and Air Conditioning - Climate control module)
• ETM (Entertainment Telematic Module - Infotelematic Module VP2, VP4)
• BCM (Body Control Module)

The CAN-BH is in the DLC multiple diagnosis connector.

The 120-ohm terminal resistors are in the BCM and the IPC module.

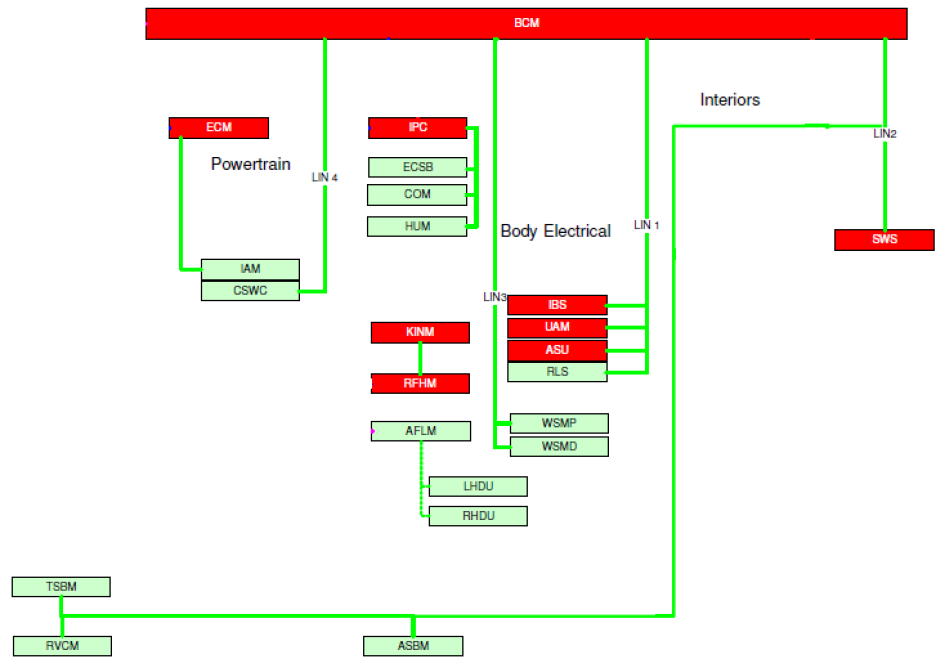

Fig 4: LINs Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

LINs

Some Modules dialogue with certain vehicle components via LINs. The BCM uses 4 LINs to dialogue with the following components:

LIN 1

• IBS (Intelligent Battery Sensor - negative battery terminal IBS)
• UAM (Ultrasonic Anti-tilt Module)
• ASU (Alarm System Unit)
• RLS (Rain Light Sensor - Rain sensor)

LIN 2

• SWS (Steering Wheel Switch bank)
• ASBM (Auxiliary Switch Bank Module - controls on dashboard)
• TSBM (Terrain Selector Bank Module - Traction mode selector module on tunnel)
• RVCM (Rear View Camera Module)

LIN 3

• WSMP (Window Smart Motor Passenger)
• WSMD (Window Smart Motor Driver)

LIN 4

• CSWC (Cruise control Steering Wheel Commands)

The instrument panel (IPC) communicates via a LIN line with the following components:

• ECSB (Emergency Call Switch Bank)
• COM (Compass Module)
• HUM (Humidity Sensor)

There is also a LIN line that connects the ECM to the voltage regulator of the intelligent alternator.
