Module Alignment - NAFTA

This procedure must be performed in the following cases:

• Removing / installing the radar sensor
• Warning light indicated the failure of the radar sensor proximity
• Rear axle adjustments
• Replacing wheel rims or tires with a larger or smaller diameter component
• Removing / installing the front end.

Preparation Measure

- The following steps must be performed before beginning the control and adjustment of the sensor / proximity radar:

• Check the inflation pressure of the tires and, if necessary, correct it.
• Make sure the steering wheel is centered.
• Check that there is at least 3 meters (10 feet) in front of the vehicle for space to setup the sensor.
• The floor can have an angle of maximum inclination of 3 ° downhill or an uphill maximum inclination of 1 °.

Fig 1: Unboxing Special Tool

Courtesy of CHRYSLER GROUP, LLC

1. Follow the instructions included in the special tool 2014000080 container for proper unboxing.

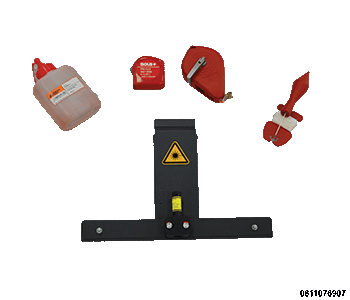

   Fig 2: Plumb Bob, Tape Measure, Snap Line, Chalk Bottle & Laser

   Courtesy of CHRYSLER GROUP, LLC
2. Verify the proper tools and components are in the shipping container. The following items are included: plumb bob, tape measure, snap line, chalk bottle, and the laser for the mirror.
   Fig 3: Assembling Special Tool

   Courtesy of CHRYSLER GROUP, LLC
3. Assemble the alignment tool following the instructions included in the shipping container.
4. Once the tool is properly assembled, set it aside while performing the measurement procedure.

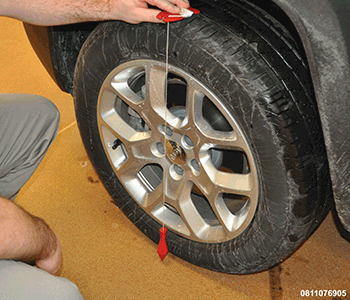

   Fig 4: Marking Floor

   Courtesy of CHRYSLER GROUP, LLC
5. Find the center of each wheel and with the plumb bob mark the floor for each wheel. The plumb bob must be the same distance out from each wheel/tire.

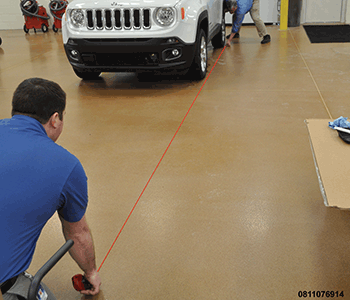

   Fig 5: Making Chalk Line

   Courtesy of CHRYSLER GROUP, LLC
6. Use the chalk line to snap a line on both the left and right side of the vehicle along the marks made with the plumb bob in the previous step. Extend the line that is snapped at least 3 meters (10 feet) in front of the center of the front wheels. This will allow room to properly position the alignment tool.

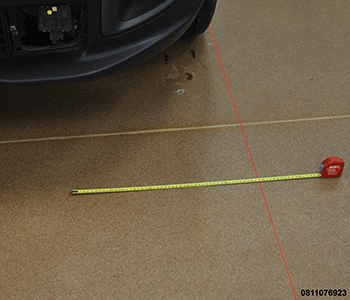

   Fig 6: Measuring Distance From Front Wheel

   Courtesy of CHRYSLER GROUP, LLC
7. Once both side lines are extended, measure out about 3 meters (10 feet) from each front wheel mark along the chalk line and mark the spot on the line.

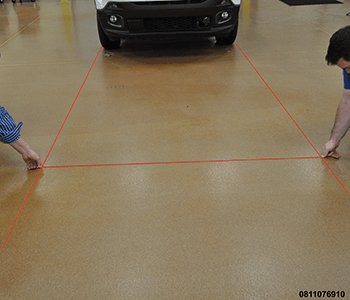

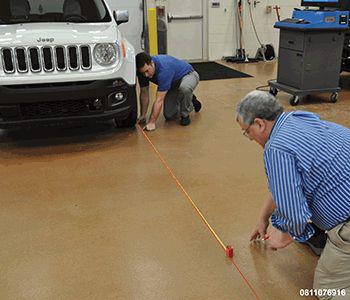

   Fig 7: Making Chalk Line Between Marks

   Courtesy of CHRYSLER GROUP, LLC
8. Once both marks have been made, snap a chalk line between the two marks to create the front line where the alignment tool will be placed.

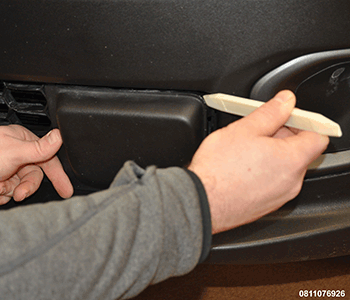

   Fig 8: Removing Trim Cover

   Courtesy of CHRYSLER GROUP, LLC
9. Remove the trim cover for the alignment sensor.

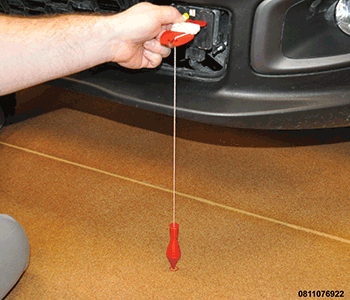

   Fig 9: Marking Floor

   Courtesy of CHRYSLER GROUP, LLC
10. Find the horizontal center of the sensor and use the plumb bob to mark the location on the floor.
    Fig 10: Measuring Distance From Mark

    Courtesy of CHRYSLER GROUP, LLC
11. Measure a side chalk line to the sensor horizontal center mark. This will be the same length that the center of the sensor tool will be placed on the front chalk line.

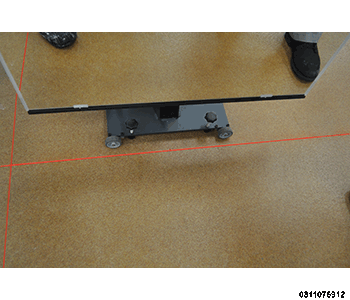

    Fig 11: Positioning Tool

    Courtesy of CHRYSLER GROUP, LLC
12. Position the sensor tool with the center lined up with the mark on the front line. Install the laser and align the beam with the chalk line.

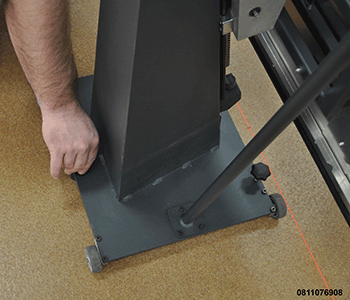

    Fig 12: Leveling Tool

    Courtesy of CHRYSLER GROUP, LLC
13. There are adjusters at the front and rear of the base of the sensor to level the tool.

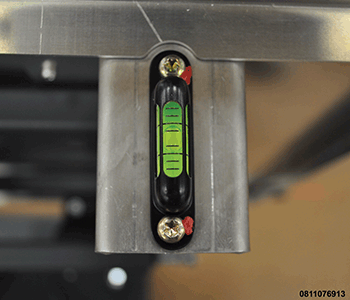

    Fig 13: Level

    Courtesy of CHRYSLER GROUP, LLC
14. With the tilt cam in the 0 degree position, adjust the tool until the bubble is in the center of the level.
15. Measure from the horizontal mark on the floor to the vertical center of the sensor.

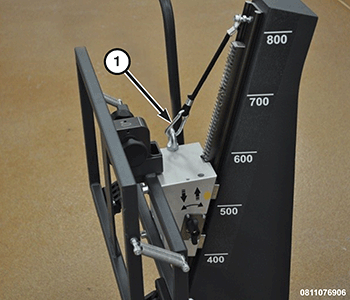

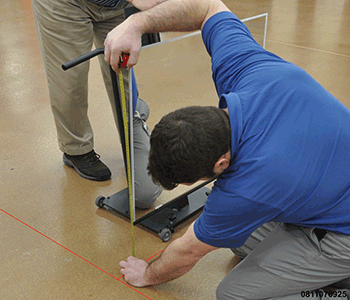

    Fig 14: Setting Height Of Mirror

    Courtesy of CHRYSLER GROUP, LLC
16. Set the height of the center of the mirror at the same height as the vertical center of the sensor.
    Fig 15: Positioning Tool

    Courtesy of CHRYSLER GROUP, LLC
17. Verify that the laser is still lined up with the front chalk line. Then make sure the bubble is still in the middle of the level with the tilt cam in the 0 degree position.
18. Turn off the laser and remove it from the mirror.
19. Use the scan tool to perform the alignment procedure.

THE SENSOR / RADAR PROXIMITY

- The calibration procedure involves performing three measurements, each time changing the angle of the reflecting mirror. To adjust the angle, tilt the mirror forward and then turn the tilt cam to the desired position.

• POSITION 1: mirror forward (2 degrees forward)
• POSITION 2: mirror in the middle (0 degrees)
• POSITION 3: mirror back (2 degrees rearward)

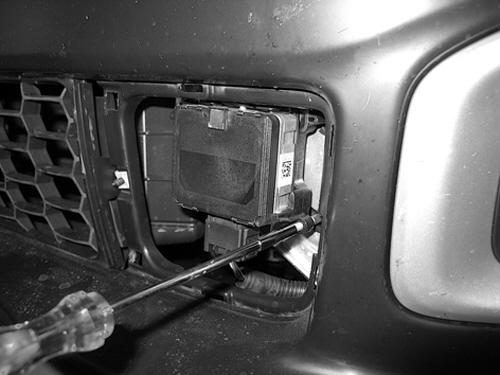

Fig 16: Vertical Adjustment

Courtesy of CHRYSLER GROUP, LLC

SCREW POSITION 1: with a tool acting on the screw shown in the figure for vertical adjustment.

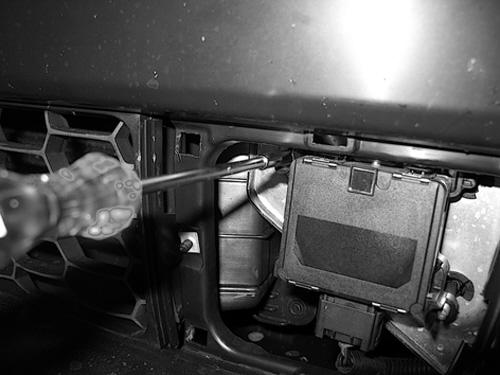

Fig 17: Horizontal Adjustment

Courtesy of CHRYSLER GROUP, LLC

SCREW POSITION 2: with tool turn screw shown in the figure for horizontal adjustment.
