Installation - Bracket

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the bracket is not damaged.
  2. Place the new bracket (1a) bushings anchor (1b) supplied with the spare.
  3. Turn with a key bushings (1b) in their seats about half a turn, until it reaches the stop (approximately 14 daN / m).
  4. Position the bracket and fasten with rivets.
  5. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  6. Connect the negative battery cable.

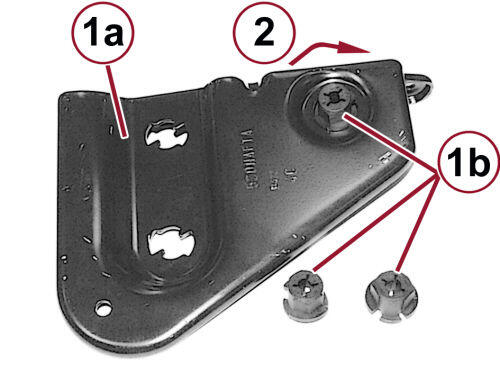

Fig 1: Bracket, Anchor & Bushings
GC0163696Courtesy of CHRYSLER GROUP, LLC
