Removal - Bracket

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

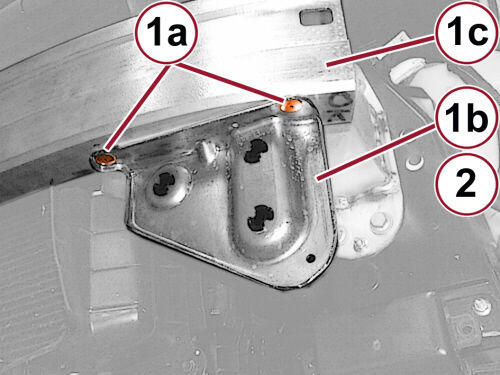

    Fig 1: Bracket & Rivets
    GC0165311Courtesy of CHRYSLER GROUP, LLC
  3. Using a drill, remove the rivets (1a) holding the bracket (1b) to cross (1c).
  4. Remove the bracket (1b).
