Left Hand Drive: Removal

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

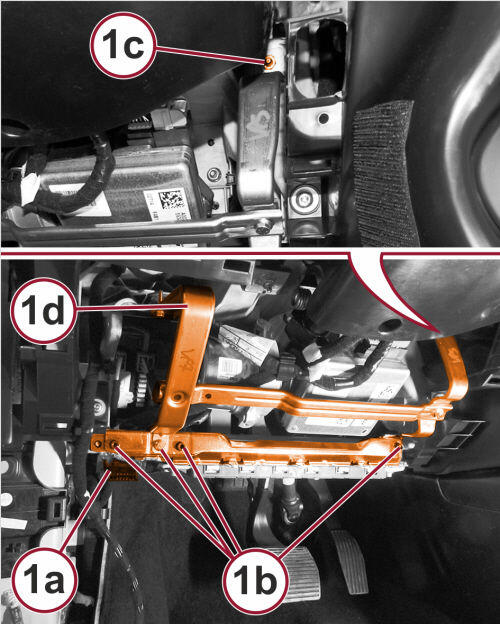

Fig 1: Body Control Module Brackets, Connector, Nut & Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the connector (1a), remove the screws (1b), nut (1c) and remove the brackets (1d) from the Body Control Module (BCM).

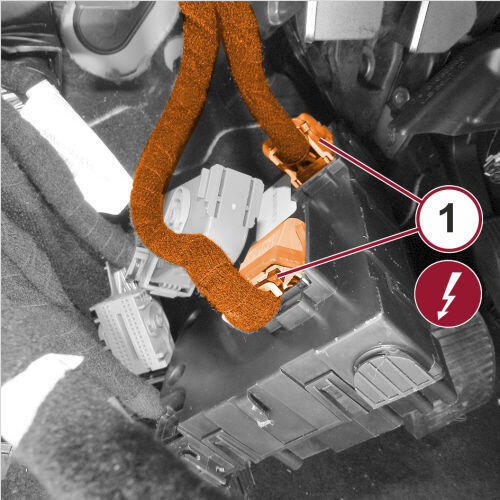

Fig 2: Body Control Module Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connectors (1).

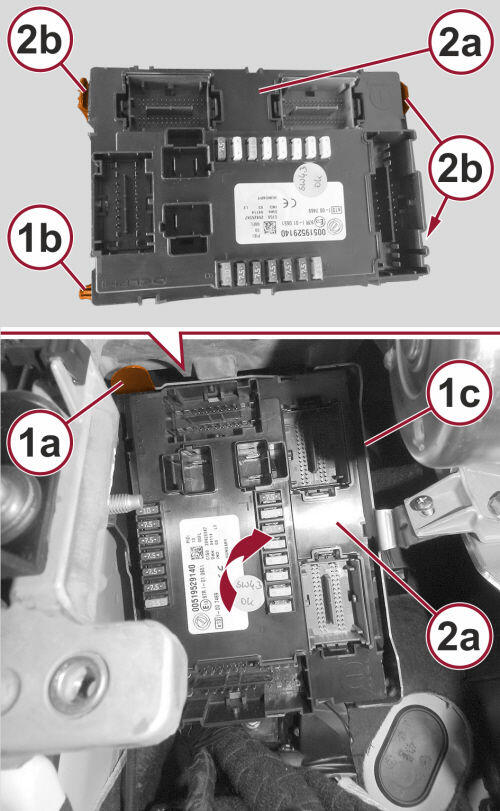

Fig 3: Body Control Module, Bracket, Pin & Retainers
Courtesy of CHRYSLER GROUP, LLC
Using a suitable tool, release the retainer (1a) and then release the pin (1b) from the bracket (1).
Turn the BCM (2a), release the retainers (2b) and move the body computer.

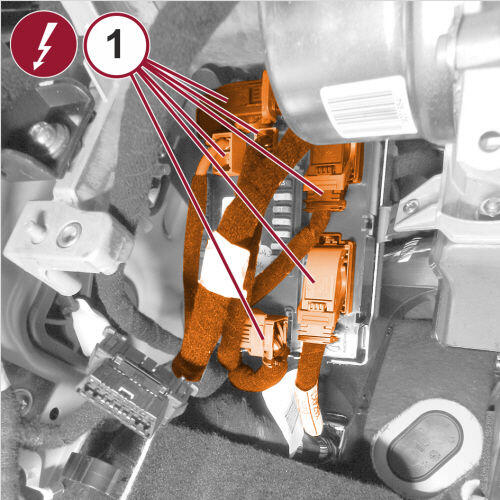

Fig 4: Back Of Body Control Module Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connections (1) from the back of the BCM.
Remove the BCM from the vehicle.
