Right Hand Drive: Removal

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.

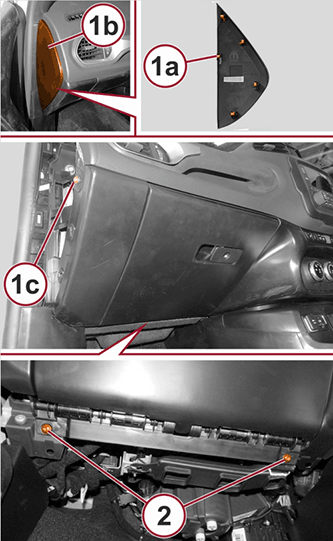

Fig 1: Side Trim, Retainers & Screws
Courtesy of CHRYSLER GROUP, LLC
Pry up the retainers (1a) with a suitable tool, remove the side trim (1b) and remove the screw (1c).
Remove the lower screws (2).

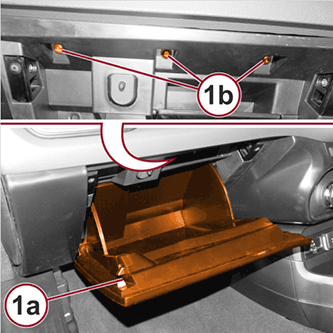

Fig 2: Glove Compartment & Screws
Courtesy of CHRYSLER GROUP, LLC
Open the glove compartment (1a) and remove the upper screws (1b).

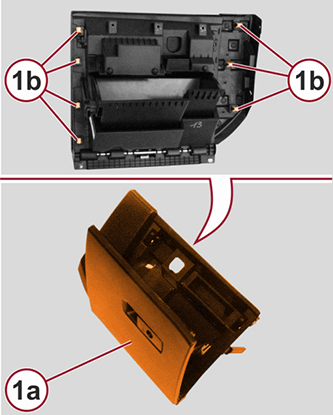

Fig 3: Glove Box Assembly & Retainers
Courtesy of CHRYSLER GROUP, LLC
Remove the glove box assembly from the dashboard (1a) by releasing the retainers (1b).

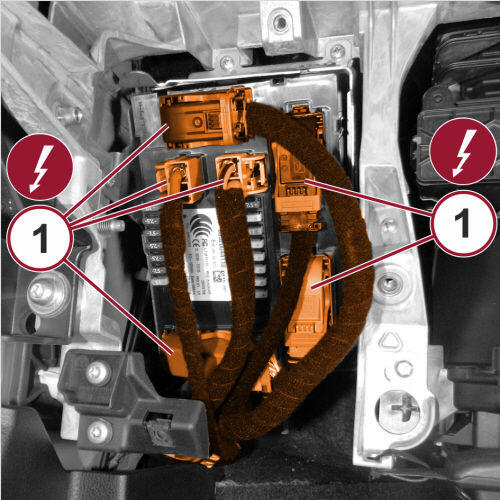

Fig 4: BCM Electrical Connections
Courtesy of CHRYSLER GROUP, LLC
Disconnect the BCM electrical connections (1).
Remove the connector (1a), remove the screws (1b), nut (1c) and remove the brackets (1d) from the Body Control Module (BCM).

Fig 5: Body Control Module Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connectors (1).

Fig 6: Body Control Module, Bracket, Pin & Retainers
Courtesy of CHRYSLER GROUP, LLC
Using a suitable tool, release the retainer (1a) and then release the pin (1b) from the bracket (1c).
Turn the BCM (2a), release the retainers (2b) and move the BCM to access the rear connectors.

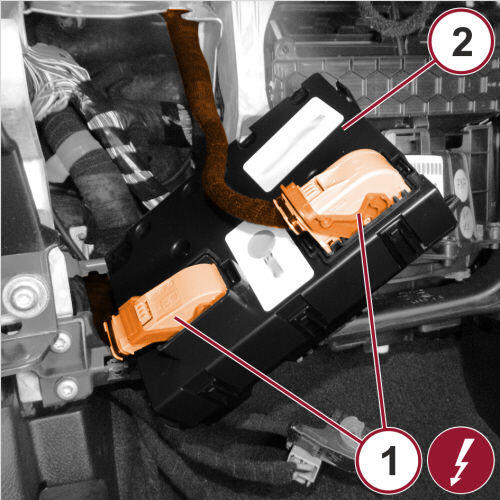

Fig 7: BCM & Electrical Connections
Courtesy of CHRYSLER GROUP, LLC
Disconnect the BCM electrical connections (1) from the back of the BCM (2).
Remove the BCM from the vehicle.
