Removal And Installation: 1.4L: Removal

WARNING: This page is about a different car, the 2016 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine beauty cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .

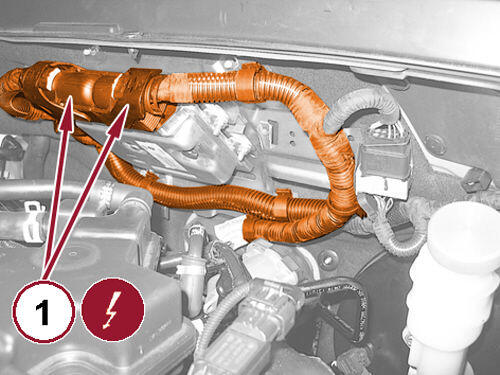

    Fig 1: Powertrain Control Module Connectors - 1.4L
    GC0164713Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Powertrain Control Module (PCM) electrical connectors.

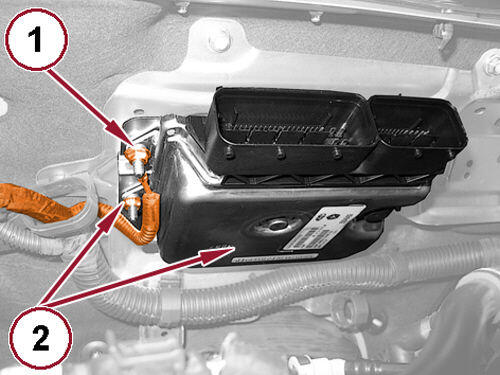

    Fig 2: Powertrain Control Module, Ground Wire & Nuts - 1.4L
    GC0165598Courtesy of CHRYSLER GROUP, LLC
  4. Remove the training nut and disconnect the ground wire.
  5. Remove the PCM retaining nuts (2) and then remove the PCM from the vehicle.
