B1612-12-Panel Illumination Control - Circuit Short To Battery: Notes

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

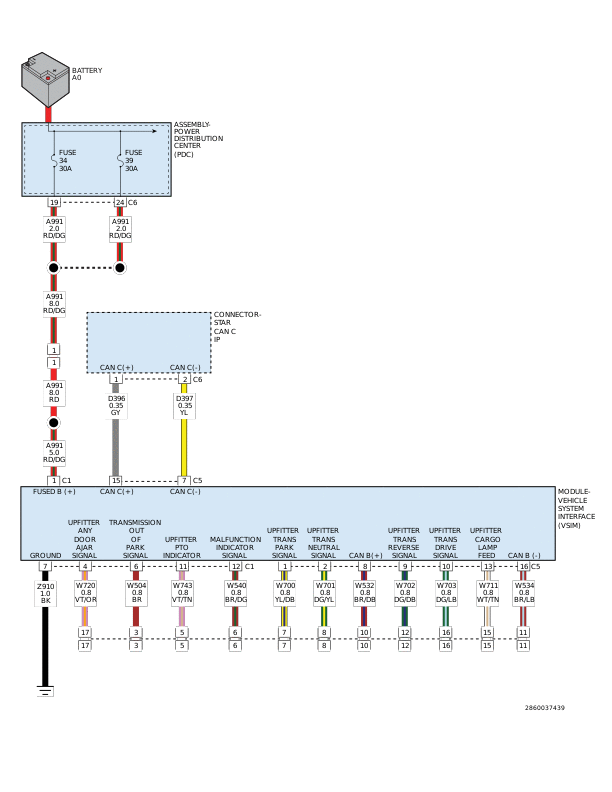

GC0168133Courtesy of CHRYSLER GROUP, LLC
