Module, Active Damping Control (ADCM): Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

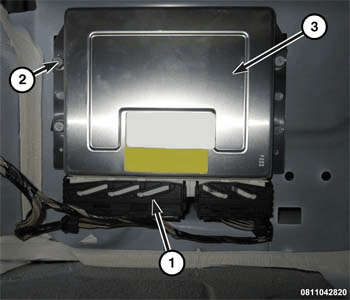

- Place the Active Damping Control Module (ADCM) (3) into position and install the three ADCM retaining screws (2). Tighten to the proper
- Install the retaining screws (2) and tighten to 9 N.m (80 in. lbs.).
- Connect the wire harness connectors (1) to the ADCM (3).
Install the inner left rear wheel well carpet. Refer to CARPET, INSTALLATION .
- Connect the negative battery cable.
- Perform the ADCM Verification Test.
