Module, Blind Spot (BSM): Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be certain that both the Left Blind Spot Sensor (LBSS) and the Right Blind Spot Sensor (RBSS) part numbers are at the same revision level. The Blind Spot Monitor (BSM) system will not function or will not function properly if the revision levels of the LBSS and the RBSS part numbers are not synchronized.

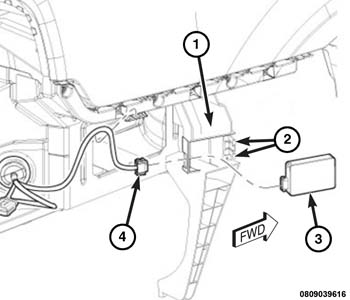

- Position the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (3) to the rear bumper fascia mounting bracket (1).
- Using hand pressure, press the LBSS or RBSS firmly and evenly into the mounting bracket until the latch tabs (2) are fully engaged.
- Reconnect the rear body wire harness connector (4) to the LBSS or RBSS connector receptacle.
- Reinstall the rear bumper fascia onto the vehicle. Refer to FASCIA, REAR, INSTALLATION .
- Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
NOTE:
If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to align the PROXI configuration data into the new ECU. Follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under Body Control Module (BCM) Miscellaneous Functions menu.
