Gearshift Lever - Instrument Panel Mounted Installation
WARNING: This page is about a different car, the 2017 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

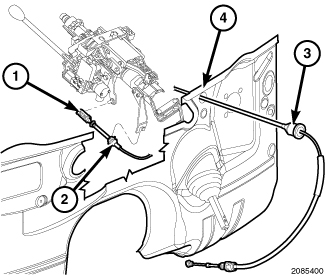

- Route the gearshift cable through the dash panel (4), and install the gearshift cable grommet (3) into the hole into the dash panel (4).
- Reconnect the gearshift cable (3) to the ball stud (2).
- Reconnect the gearshift cable (3) to the cable bracket.
- Place gearshift lever into PARK.
- Raise vehicle.NOTE:
The transmission must be in PARK.

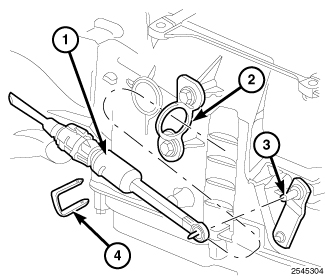

- Route gearshift cable (1) through the mounting bracket (2).
- Engage the gearshift cable (1) eyelet onto the transmission manual shift lever (3).
- Install the gearshift cable retaining clip (4) (if equipped).
- Lower the vehicle.
- Verify the transmission shifts in and out of PARK, and through all gear ranges. If necessary, adjust the gearshift cable. Refer to CABLE, SHIFT, ADJUSTMENTS
.
- Install the silencer panel (1), and the silencer panel fasteners.

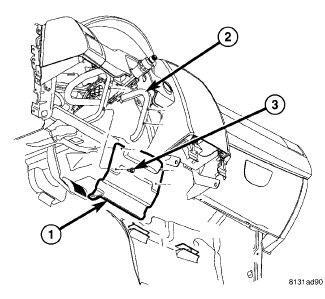

- Install the instrument panel steering column cover reinforcement (1) to the bracket (2), and install the screws (3).
- Reconnect the trunk release harness connector to the trunk release switch on the knee bolster.
- Install the knee bolster.
- Install the knee bolster fasteners.
- Install the instrument panel side trim at the end of the instrument panel.
